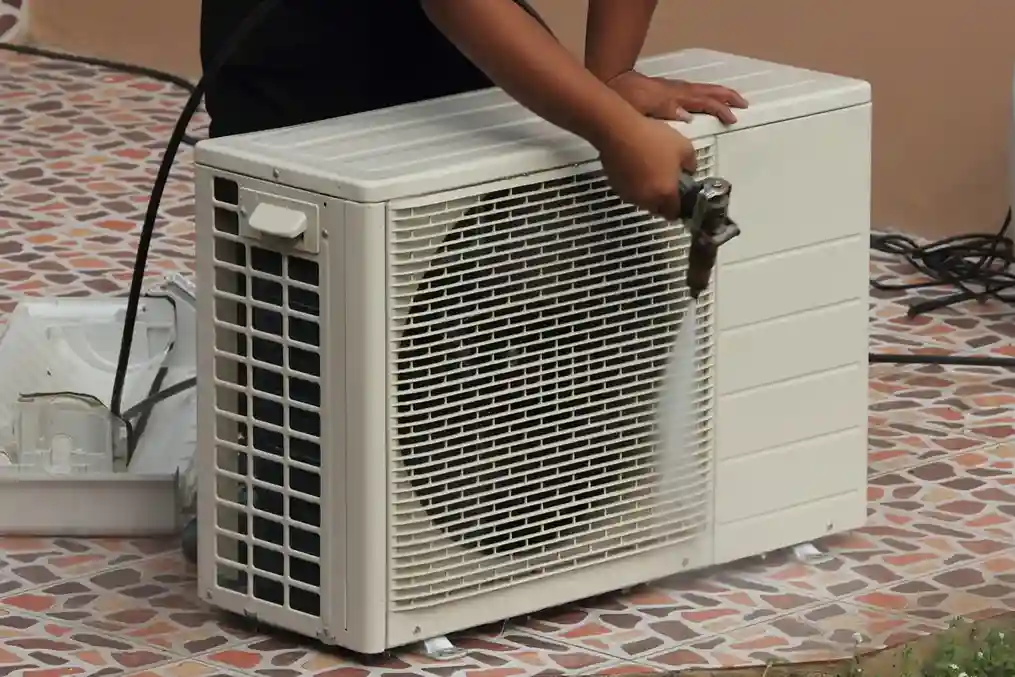

Watch video of Mini Split (ductless) heat pump cleaning!

Beyond 'Bigger': The Reality of Commercial HVAC Electrical Needs

At Presidential Ventilation Systems Ltd., we frequently encounter a common misconception among property developers that the difference between residential and commercial electrical hookup requirements in NS is simply a matter of scale. Many assume that a commercial HVAC system is just a larger version of what sits outside a typical home, plugging into the same type of power grid with slightly thicker wires. The reality is far more complex. Underestimating the specialized electrical infrastructure needed when transitioning from a standard 3-ton residential unit to a heavy-duty 20-ton commercial rooftop system is a critical misstep that can derail an entire construction timeline.

Evaluating whether a building's current electrical service can actually support new commercial HVAC—or if a full infrastructure upgrade is required—is a vital decision point. When you are planning a project and need professional HVAC services, understanding this infrastructure gap is the first step toward a successful installation. Proper planning prevents costly construction delays, ensures strict Nova Scotia commercial electrical and construction code compliance, and keeps your project on track from the initial blueprint to the final inspection.

Phase Types and Load Capacities: The Technical Divide

Our installation teams routinely explain that to understand why commercial systems require specialized planning, you have to look at how electricity is delivered. The fundamental divide between residential and commercial electrical needs comes down to phase types and standard voltage capacities.

The Mechanics of Single-Phase vs. Three-Phase Power

Standard residential properties are wired for single-phase power. In a single-phase 240V setup, alternating current flows through two hot wires. Because the current alternates, the power delivery actually drops to zero momentarily between cycles. For household appliances and standard residential air conditioners, this intermittent power delivery is perfectly fine. The motors are small enough that they do not require continuous, unrelenting force to keep spinning.

Commercial buildings operate on an entirely different scale. Commercial HVAC systems, such as large 15-ton rooftop units or extensive variable refrigerant flow (VRF) systems, demand robust three-phase power. In a three-phase system, power is delivered across three separate wires, with the alternating currents overlapping. This means the power delivery never drops to zero. A three-phase 208V/600V load provides a constant, steady stream of electricity that allows massive commercial compressors and blower motors to run continuously without overheating or wearing out prematurely.

Comparing Load Requirements

When our team installs commercial and residential heat pumps, we see firsthand that the electrical demands look completely different on paper and in practice. Three-phase power is significantly more efficient for heavy mechanical loads, which translates to better longevity for your commercial equipment.

• Single-Phase — Standard Voltage: 120V / 240V — Load Capacity: Lighter, intermittent loads — Typical Application: Single-family homes, small duplexes, standard residential split systems

• Three-Phase — Standard Voltage: 208V / 480V / 600V — Load Capacity: Heavy, continuous loads — Typical Application: Commercial offices, retail spaces, large rooftop HVAC units

Navigating Nova Scotia Electrical and Construction Codes

In our years of commercial construction experience across Mount Uniacke and surrounding areas, we've found that the jump from residential to commercial brings a strict new layer of regulatory scrutiny. You cannot simply run a new wire and hope for the best. Every commercial HVAC electrical installation must adhere strictly to the Canadian Electrical Code (CEC) Part 1, alongside specific provincial and municipal regulations.

The Code Compliance Sequence

Residential code compliance is generally straightforward, focusing on proper breaker sizing, standard wire gauges, and basic safety disconnects. Commercial compliance requires a much deeper level of engineering and verification. Here is what the commercial compliance sequence typically involves:

1. Load Calculations: Before any equipment is ordered, a licensed professional must perform a detailed load calculation to prove the building's main service can handle the new three-phase equipment alongside existing lighting, computers, and machinery.

2. Conduit and Routing Standards: Commercial codes often require all wiring to be protected in specific types of metal conduit, whereas residential wiring might use standard non-metallic sheathed cable routed through wood framing.

3. Nova Scotia Power Coordination: If the building requires a service upgrade to support three-phase power, coordination with Nova Scotia Power is mandatory. This involves specific connection standards, transformer upgrades, and strict timelines.

4. Engineered Drawings and Permitting: Commercial installations frequently require stamped engineered drawings submitted for municipal permits before work begins, followed by rigorous multi-stage inspections.

The strict rule of commercial electrical work: Compliance is non-negotiable. Because of the high voltages and complex Nova Scotia commercial electrical and construction code compliance requirements, this is never a do-it-yourself project. Only licensed commercial electricians and certified HVAC professionals are legally permitted to design and execute these installations.

Weatherproofing and Exterior Disconnects for Coastal Environments

Electrical codes dictate how power is delivered, but the local environment dictates how that power is protected. In Nova Scotia, the coastal climate plays a massive role in commercial HVAC electrical planning.

The Threat of Coastal Corrosion

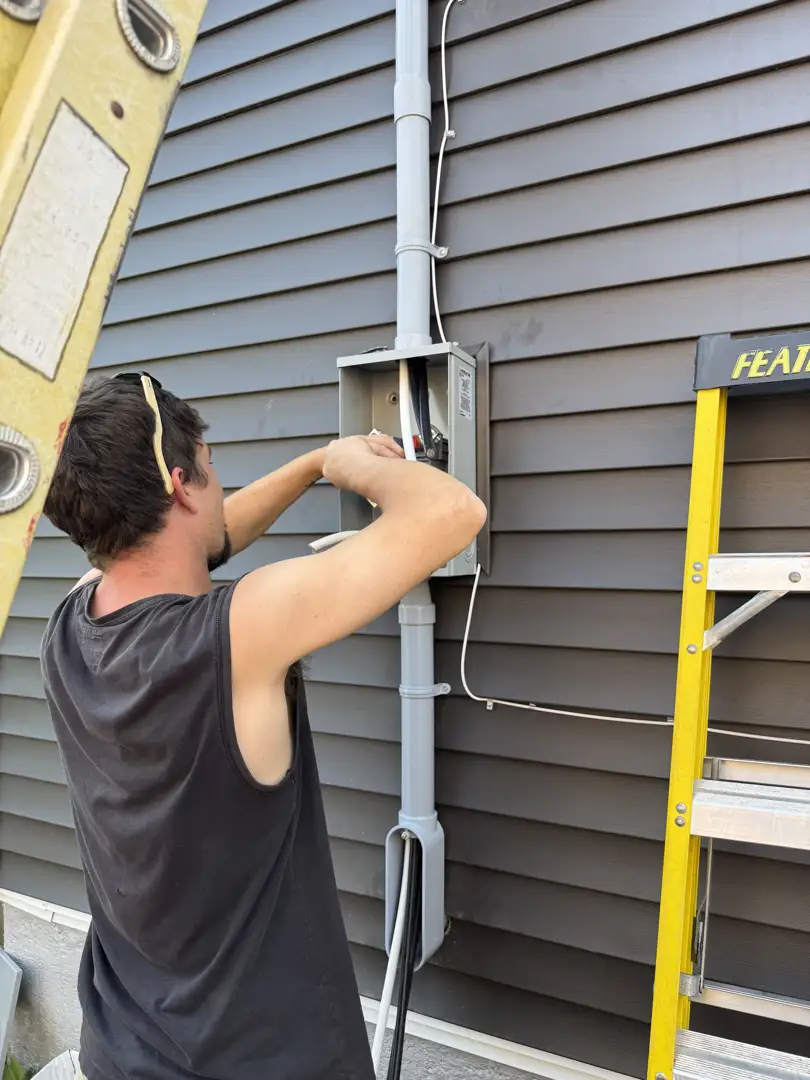

Every HVAC unit requires an exterior electrical disconnect—a physical switch located near the outdoor unit that allows technicians to cut the power safely before performing maintenance. On a residential property, this disconnect is usually mounted on the side of the house, somewhat protected by roof overhangs and standard weatherproof covers.

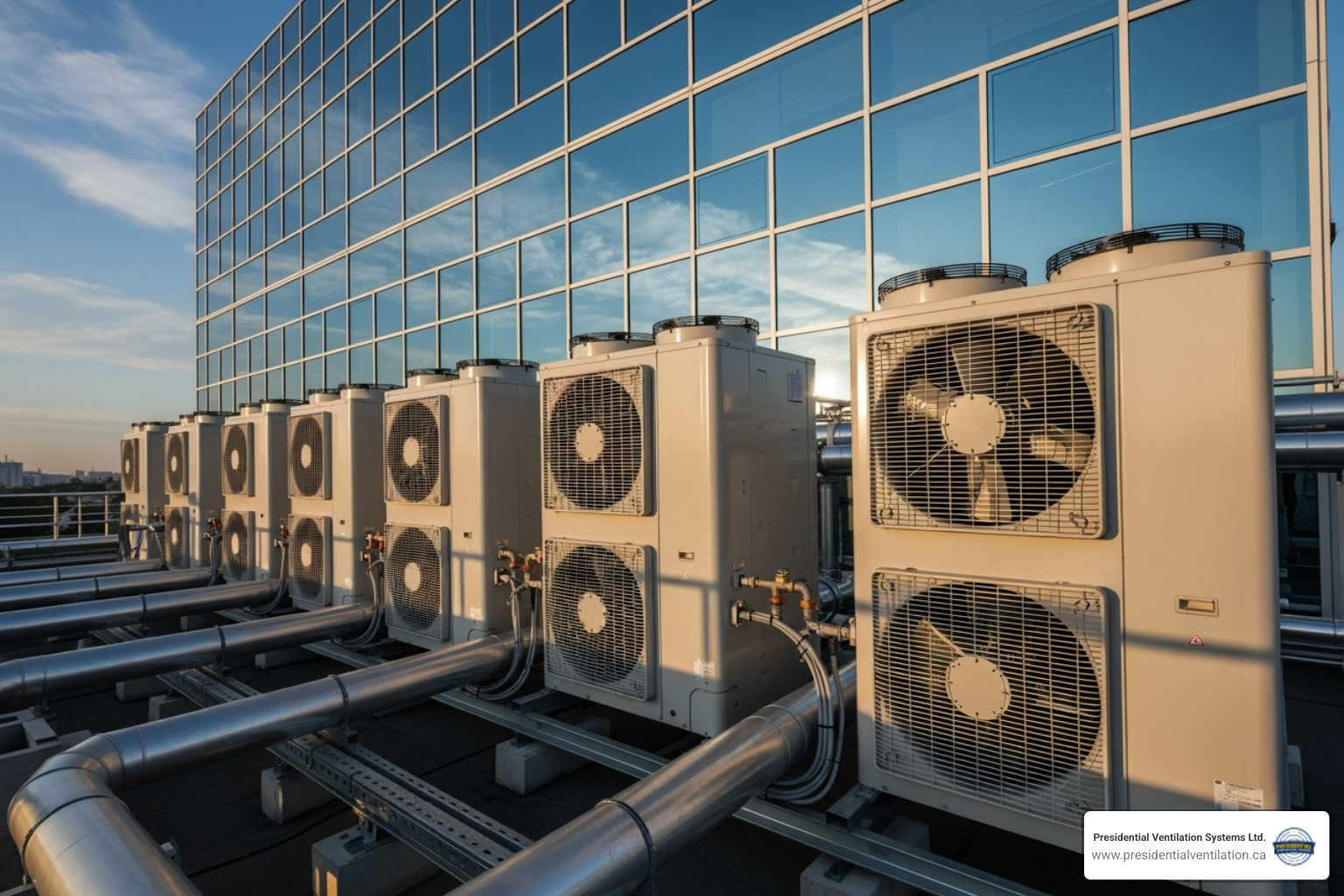

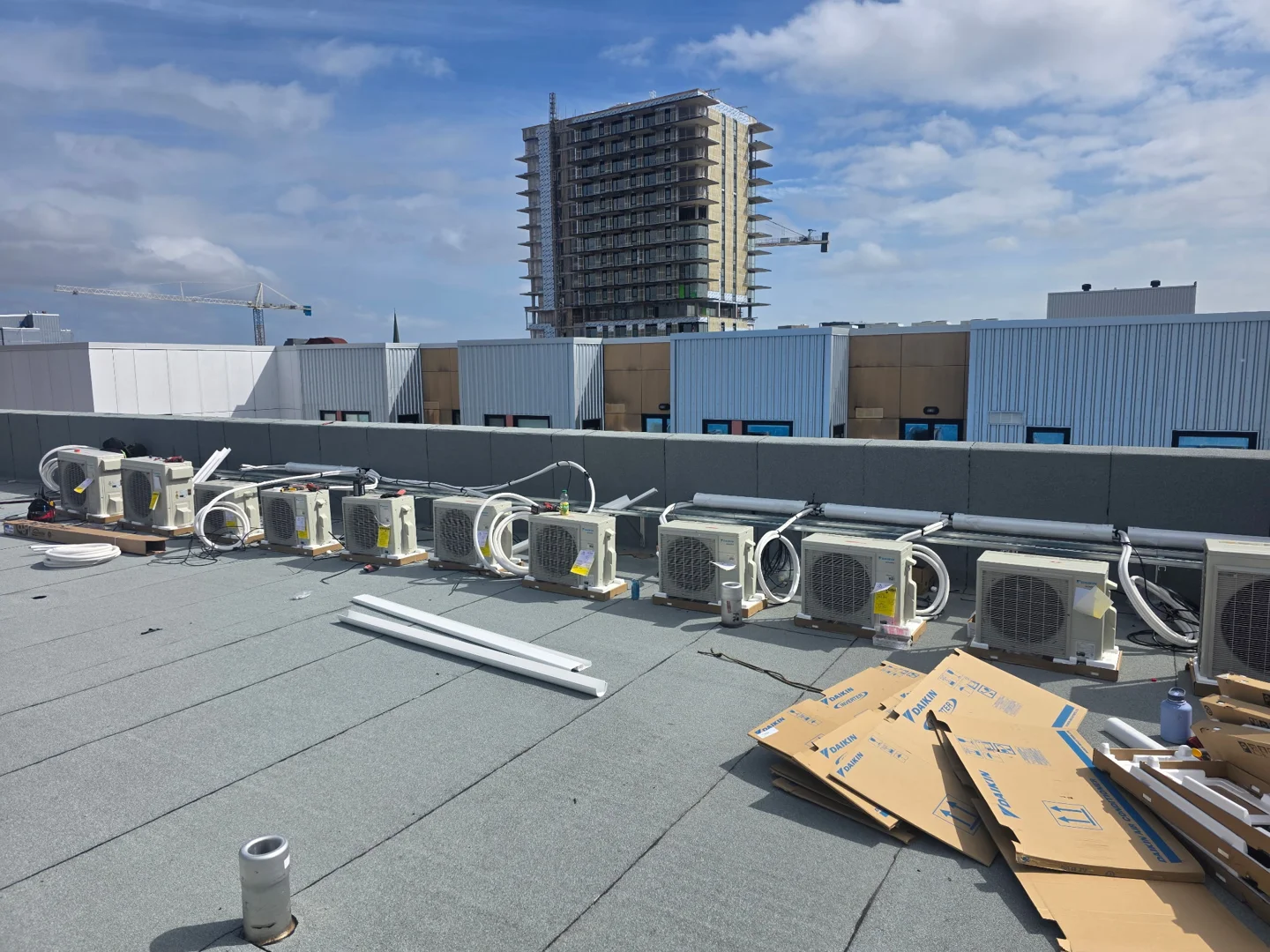

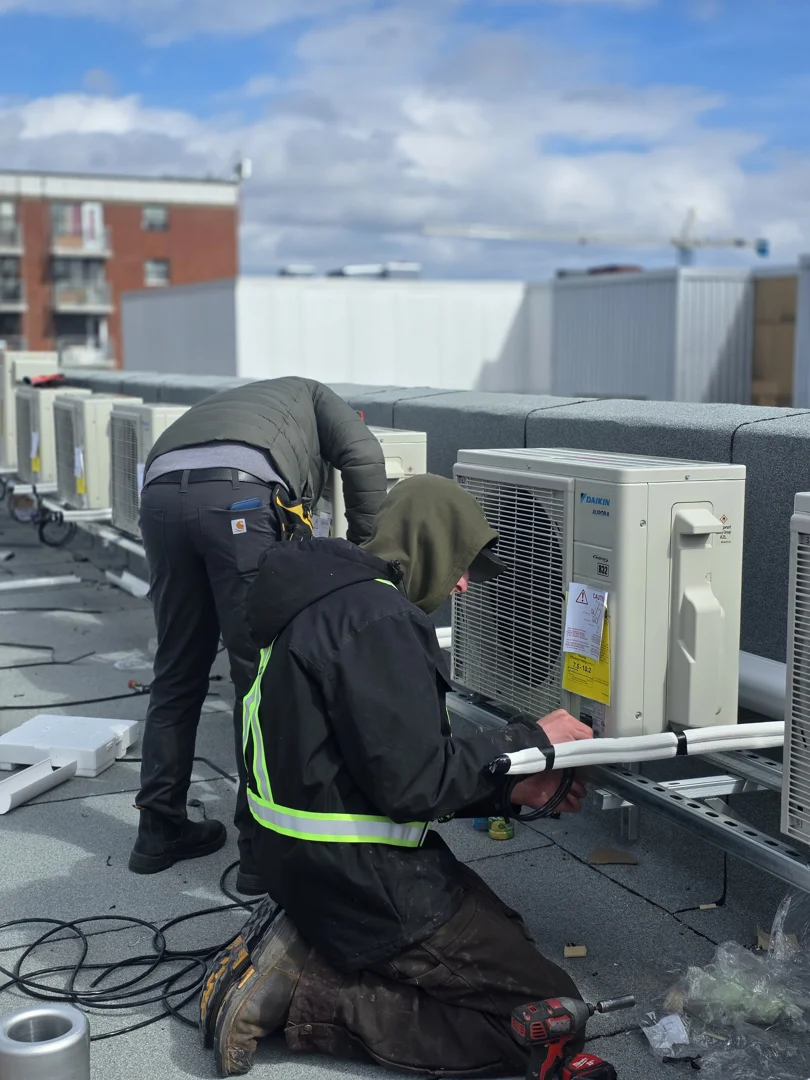

Commercial rooftop units face a much harsher reality. Elevated on flat roofs, these units and their electrical disconnects are completely exposed to the elements. During the brutal freeze-thaw cycles and severe nor'easters we typically see from January through March, standard residential electrical enclosures will corrode and fail rapidly.

Heavy-Duty Protection Standards

To ensure uninterrupted commercial operation, we always ensure electrical hookups utilize specific heavy-duty protections:

• NEMA 3R or 4X Enclosures: Commercial disconnects in coastal zones require high-grade NEMA-rated enclosures designed specifically to resist salt-air corrosion, ice formation, and wind-driven rain.

• Watertight Conduit Fittings: Every connection point where wire enters the unit or the disconnect box must use specialized watertight fittings to prevent moisture from creeping into the electrical panel.

• Elevated Mounting: Disconnects and electrical runs must be mounted securely above potential 12-to-18-inch snowdrift lines and standing water on flat commercial roofs.

Planning for these environmental factors during the initial design phase prevents dangerous electrical shorts and sudden system failures during the peak of winter or the height of a summer heat wave.

Evaluating Existing Electrical Capacity and Panel Upgrades

Before you commit to a specific commercial HVAC system, you must know what your building is currently capable of powering. Failing to audit your existing electrical capacity is the fastest way to stall a construction project.

The Electrical Audit Process

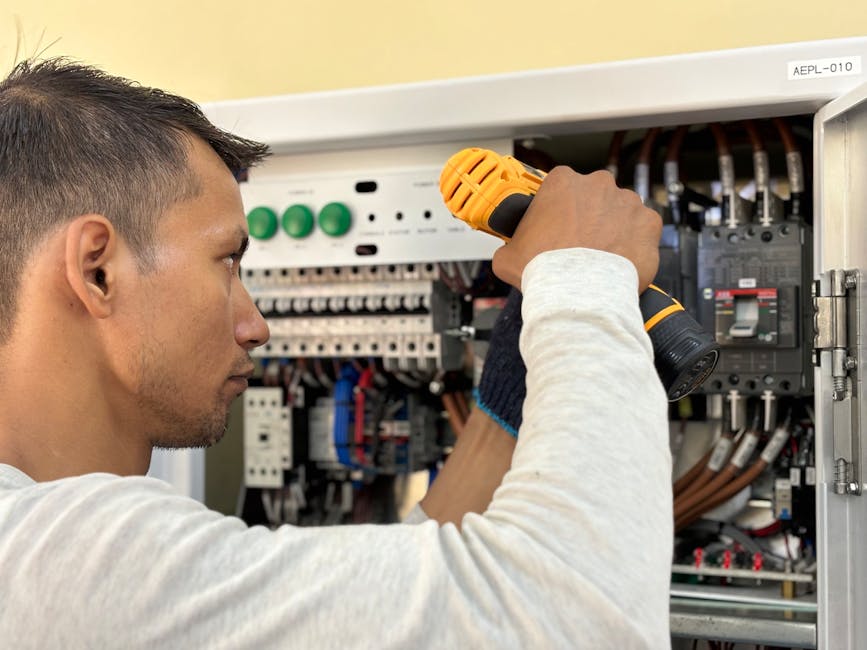

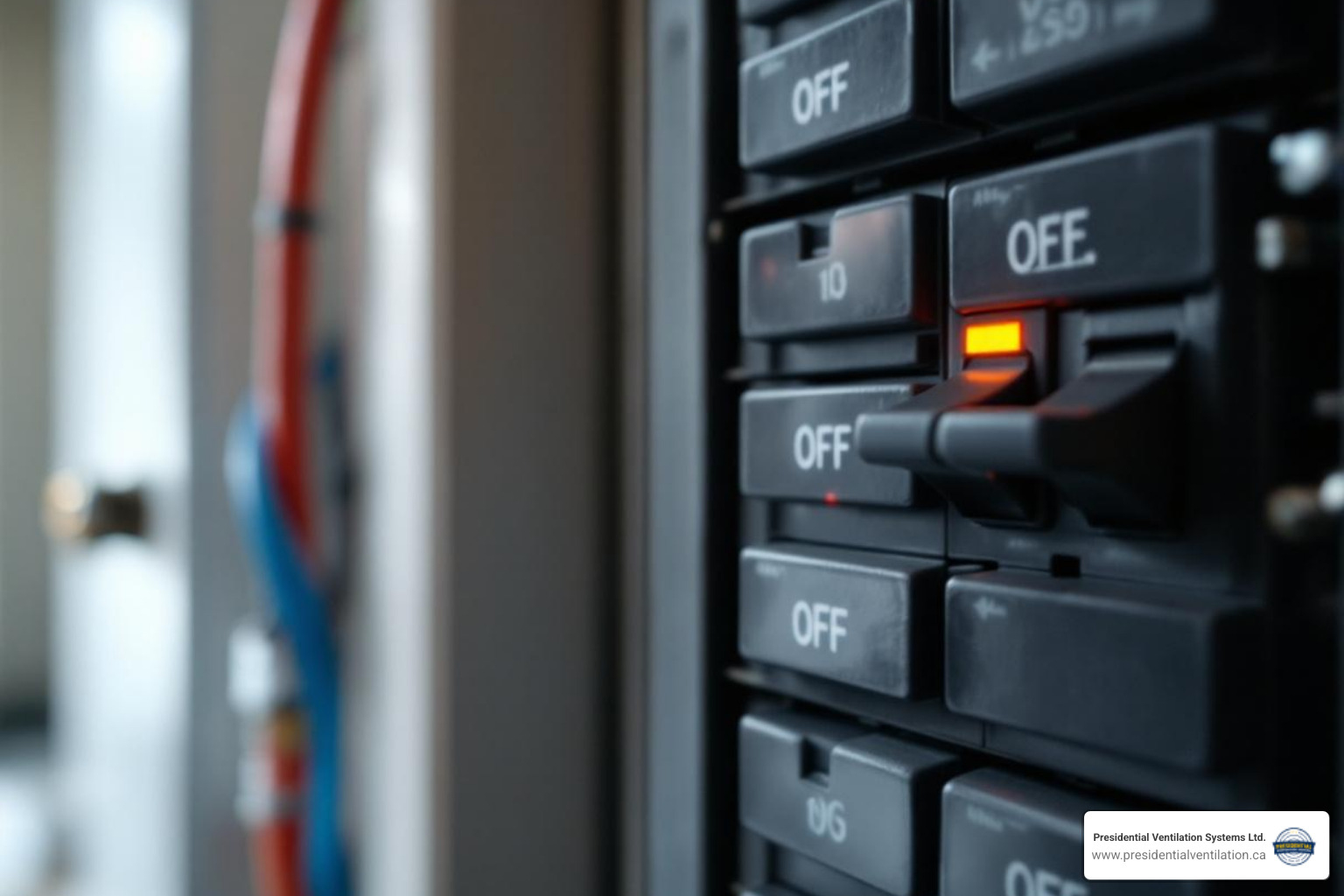

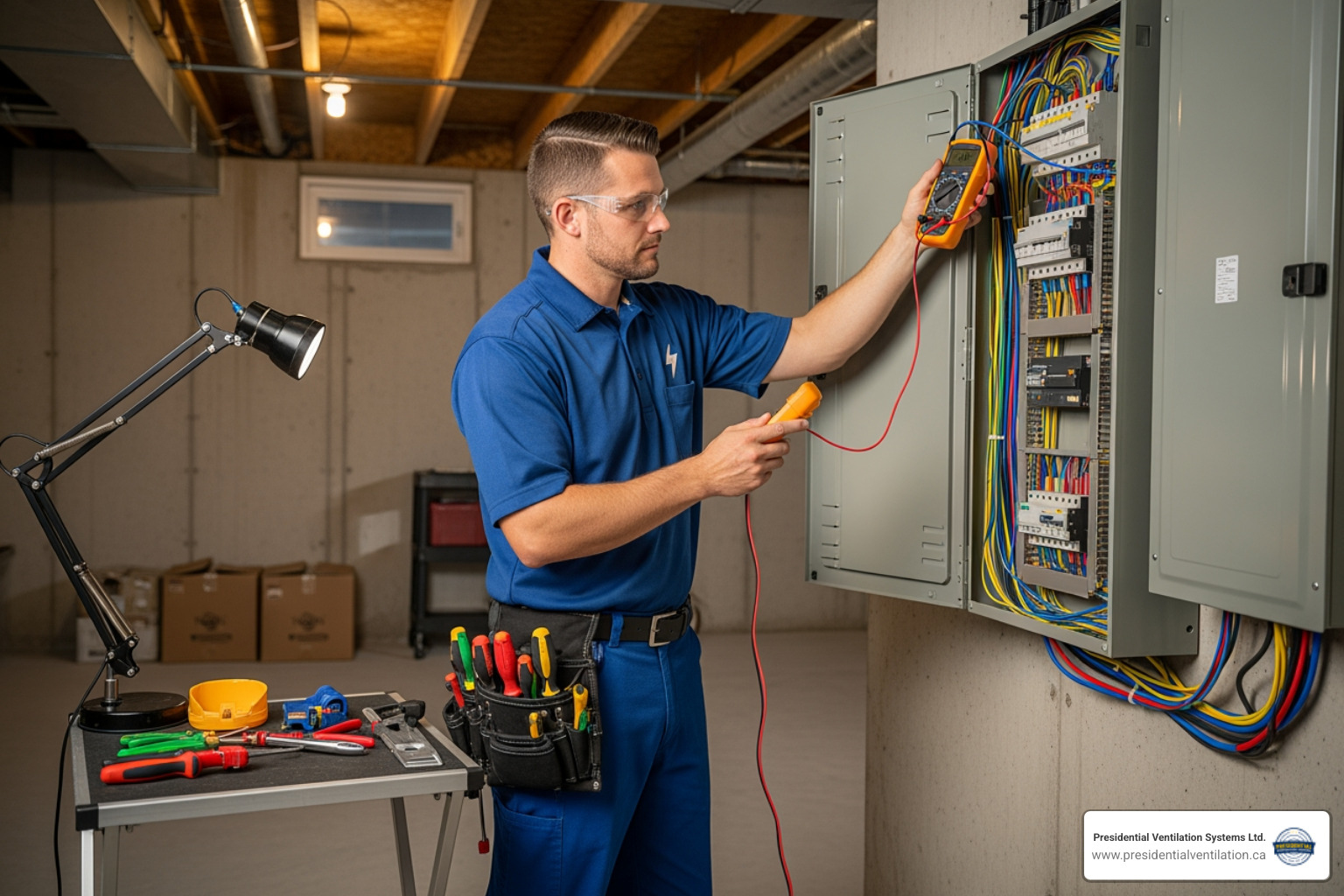

When our technicians conduct an electrical audit, a licensed professional reviews your main distribution panel, sub-panels, and overall service entrance. We look for available physical space for new breakers, but more importantly, we calculate the total ampacity your service can draw from the grid. If your building is older, or if it was originally designed for lighter retail use rather than heavy mechanical loads, you will likely hit a capacity wall—often necessitating a jump from a standard 200-amp single-phase panel to a 400-amp or 600-amp three-phase service.

Signs you need a service upgrade:

• The main panel lacks the physical space for new three-phase breakers.

• The building's total calculated load is already near 80% of its maximum capacity.

• The existing service is only single-phase, and the new rooftop units require three-phase 208V or 600V power.

Real-World Capacity Challenges

Coordinating an electrical panel upgrade alongside a mechanical installation requires precise timing. One local property manager ran into this exact challenge during a summer installation. While upgrading their building to a new central heat pump system, it became clear that the existing electrical panel could not safely support the load. Jack, a seasoned member of our installation team, quickly stepped in to evaluate the existing service, resolve the panel upgrade concerns on-site, and keep the project moving forward without massive delays.

Professional diagnosis catches these issues early. Understanding your breaker panel upgrade cost and timeline during the initial estimating phase prevents mid-project surprises and budget overruns.

Preventing Construction Bottlenecks Through Integrated Planning

In commercial construction and renovation, time is closely tied to budget. When mechanical HVAC needs and electrical planning are treated as two isolated silos, projects inevitably face costly delays.

The Danger of Siloed Trades

A common scenario plays out on commercial job sites: the HVAC team installs the rooftop units and ductwork, but they cannot test or commission the system because the electrical team wasn't properly briefed on the specific three-phase requirements. Drywall gets delayed, ceiling grids stay open, and the entire project grinds to a halt while trades wait on each other.

This is where Presidential Ventilation Systems Ltd.'s comprehensive expertise makes a massive difference. By handling both standard residential single-phase systems and complex commercial three-phase requirements, our team ensures that mechanical and electrical planning happen simultaneously. We align the custom mechanical needs—like custom sheet metal fabrication and heavy equipment placement—perfectly with the electrical routing and code compliance. This unified approach prevents trade bottlenecks and keeps your construction timeline moving smoothly.

Unlocking Efficiency Nova Scotia Rebates

Integrated planning does more than just save time; it opens the door to financial incentives. Installing high-efficiency, three-phase commercial HVAC equipment often aligns with strict criteria for Efficiency Nova Scotia commercial rebates. However, qualifying for these rebates requires precise documentation, proper load calculations, and certified installations. When your mechanical and electrical plans are unified by our team from day one, capturing these valuable incentives becomes a seamless part of the project rather than a stressful afterthought.

Frequently Asked Questions About HVAC Electrical Requirements

Why do commercial HVAC systems require three-phase power?

Three-phase power provides a constant, steady stream of electricity without the momentary drops in power seen in single-phase systems. This continuous power delivery is absolutely necessary for the heavy, unrelenting loads of commercial HVAC compressors and large blower motors. It allows these massive components to run efficiently without overheating, reducing mechanical wear and extending the lifespan of the equipment.

What voltage is required for commercial HVAC units?

While standard residential HVAC units typically run on 240V single-phase power, commercial units demand much higher capacities. Depending on the size of the equipment and the building's specific infrastructure, commercial HVAC systems generally require 208V, 480V, or 600V three-phase power. A licensed professional must match the equipment specifications to the building's available service voltage.

What is the difference between commercial and residential electrical codes in Canada?

Commercial electrical codes are significantly more stringent than residential codes due to higher voltages and heavier continuous loads. The Canadian Electrical Code (CEC) requires strict commercial load calculations, specific heavy-duty metal conduit routing, and advanced three-phase safety standards that simply do not apply to standard residential single-phase wiring.

What are the electrical requirements for a commercial heat pump in Nova Scotia?

A commercial heat pump installation in Nova Scotia must comply with CEC Part 1, local municipal building codes, and specific Nova Scotia Power service connection standards. Additionally, because of the coastal climate, the exterior electrical disconnects and enclosures must be highly weatherproof (NEMA-rated) to withstand salt-air corrosion and severe storms.

How do I know if my commercial building has enough electrical capacity for new HVAC?

You cannot determine capacity simply by looking at the size of your breaker box. A licensed professional must perform a comprehensive load calculation on your existing panel, factoring in current usage and the demands of the new three-phase equipment. This audit will definitively determine if your current service is adequate or if a complete panel and service upgrade is necessary.

Can upgrading my commercial HVAC electrical system qualify me for rebates?

Yes, strategic upgrades often open the door to financial incentives. Installing high-efficiency three-phase commercial HVAC equipment frequently aligns with the strict criteria required for Efficiency Nova Scotia commercial rebates. Proper electrical planning ensures the installation meets all the necessary efficiency and documentation standards to secure these funds.

Secure Your Commercial Infrastructure with Expert Electrical Planning

Understanding the significant leap from basic residential wiring to complex commercial electrical requirements is the key to a successful HVAC upgrade. It is not just about thicker wires; it is about managing heavy continuous loads, navigating strict provincial codes, and protecting your investment against Nova Scotia's harsh coastal environment.

Anticipating your three-phase power needs, auditing your current panel capacity, and planning for potential efficiency rebates ensures your construction or renovation project remains on schedule and on budget. By bridging the gap between mechanical HVAC demands and strict electrical compliance, our team eliminates guesswork and prevents costly delays. Consult with Presidential Ventilation Systems Ltd. early in your planning phase to evaluate your building's true electrical capacity and secure a clear, professional roadmap for your commercial installation.

What Is Causing the Sudden Noise in Your Commercial Heat Pump?

If you are currently tasked with identifying the source of strange noises in your commercial ducted heat pump, you already know the immediate anxiety that follows a sudden mechanical sound. At Presidential Ventilation Systems Ltd., our team frequently receives emergency calls from facility managers who have walked through their building and heard a startling pop, a harsh grind, or a persistent rattle echoing from the vents. In a commercial setting, these sounds instantly trigger fears of catastrophic blower motor failure, uncomfortable tenants, and expensive business downtime.

During the intense cold of the Nova Scotia winter heating season, particularly during those bitter January deep-freezes, commercial HVAC systems operate under massive thermal and mechanical loads. This heavy usage can produce a wide variety of operational acoustics. The critical decision point for any facility manager is knowing how to distinguish the harmless sounds of normal thermal expansion from the dangerous grinding of a failing mechanical component that requires licensed electrical intervention.

This guide serves as a safety-first auditory diagnostic tool based on our extensive field experience. By understanding what different acoustic signatures mean, you can make informed decisions about when to simply monitor the system and when to call in our professionals to service your commercial ducted heat pump systems.

Popping and Pinging: The Reality of Thermal Expansion in Ductwork

One of the most common acoustic complaints our technicians hear in large buildings is a sudden, sharp popping or pinging sound echoing through the ceiling. While it can sound like something is breaking or snapping, this specific noise is almost always a matter of basic physics, specifically thermal expansion and contraction.

Commercial 24-gauge sheet metal ductwork is rigid, but it still responds to temperature changes. When a system kicks on, it pushes a massive volume of hot supply air into ducts that have been sitting in cold commercial spaces. As the metal rapidly heats up, it expands. When the cycle ends and the metal cools, it contracts. This microscopic shifting causes the metal joints and panels to flex, producing distinct popping or pinging noises.

Because Mount Uniacke commercial facilities frequently endure rapid maritime freeze-thaw cycles, temperature deltas of 20°C to 30°C maximize ductwork thermal expansion. You are most likely to hear these sounds when the system first starts up or immediately after it shuts down. We often see this in new commercial construction where the ducts are tightly sealed. While a certain amount of popping is entirely normal, excessively loud or constant banging might indicate restricted airflow causing the ductwork to "oil-can" (flex inward and outward violently due to pressure imbalances). If the noise becomes disruptive to your daily operations, scheduling a commercial HVAC tune-up can help a technician identify if airflow adjustments are necessary.

Is Ductwork Popping a Sign of Failure?

We always reassure our commercial clients that occasional popping is a natural physical reaction to heat, not a mechanical failure. The sheet metal itself is not breaking, and the core heating equipment is likely functioning exactly as designed. You can differentiate between harmless expansion and actual mechanical failure by the timing: thermal expansion pops happen during temperature shifts (start-up and shut-down), whereas mechanical failures produce continuous noise the entire time the unit is running.

Grinding and Screeching: Identifying Blower Motor Bearing Failures

Unlike the harmless popping of sheet metal, a harsh grinding, screeching, or metal-on-metal sound is a severe warning sign. In our years of servicing heavy-duty commercial equipment, this acoustic profile almost universally points to an issue with the blower motor, most commonly a bearing failure. The blower motor is the mechanical heart of your air delivery system, responsible for pushing conditioned air through the massive network of commercial ductwork.

Inside the motor, heavy-duty bearings allow the central shaft to spin smoothly at speeds often exceeding 1,000 RPMs. Over time, especially in models older than 7 to 10 years, the lubrication inside these bearings can break down due to age, excessive heat, or particulate buildup. When that lubrication fails, steel rubs directly against steel. This creates a distinct, high-pitched screech or a low, rumbling grind that vibrates through the entire facility.

Critical Safety Warning: Commercial 3-phase 460V motors and high-voltage electrical systems are incredibly dangerous. Electrical diagnostics and motor repairs MUST always be handled by a licensed professional. Never attempt DIY electrical troubleshooting, panel removal, or motor lubrication on a commercial system. The risk of severe shock, arc flash, or permanent equipment damage is simply too high.

Ignoring a grinding noise in Mount Uniacke commercial facilities will inevitably lead to a cascading failure. A seized bearing will cause the motor to overheat, potentially burning out the electrical windings, tripping high-voltage breakers, and resulting in a complete system shutdown right when you need heating the most.

Rattling and Vibrations: Loose Hardware and Panel Issues

A continuous rattling or buzzing vibration is another frequent acoustic issue in commercial environments. Because industrial-grade 10-ton to 20-ton heat pumps move a massive volume of air and contain heavy, fast-moving components, they generate significant baseline vibration. Over months and years of heavy operational loads, this constant vibration can cause access panels, mounting brackets, internal screws, and other hardware to slowly back out and loosen.

When a metal access panel is just a fraction of an inch loose, the operational vibration turns it into a giant snare drum, causing a loud, distracting rattle. This is fundamentally different from the rapid, aggressive buzzing or clicking of a failing electrical contactor, which requires immediate professional replacement. Loose hardware, while annoying, is generally a structural acoustic issue rather than an electrical emergency.

Fortunately, our technicians easily resolve these minor structural vibrations. For example, during a recent summer cooling season, our team helped a local facility manager who noticed a persistent rattling issue shortly after a new ducted system was installed. We sent technicians out the same day, quickly diagnosing a minor hardware vibration. They promptly secured the loose components, ensuring the system ran flawlessly and quietly without further disruption.

During the demanding Nova Scotia winter heating season, one of our technicians can systematically walk through your facility, tightening panels, securing blower wheel mounts, and adding vibration-dampening pads where necessary. This quick professional intervention stops the noise before a loose component can break free and cause secondary internal damage.

Whooshing Sounds: Normal Defrost Cycles vs. Airflow Restrictions

Air movement inherently creates sound, but the nature of that sound tells a clear diagnostic story. In a commercial ducted system, you will occasionally hear a distinct "whooshing" or a sudden rush of air and fluid. The context of this noise determines whether it is a normal operational phase or a sign of system distress.

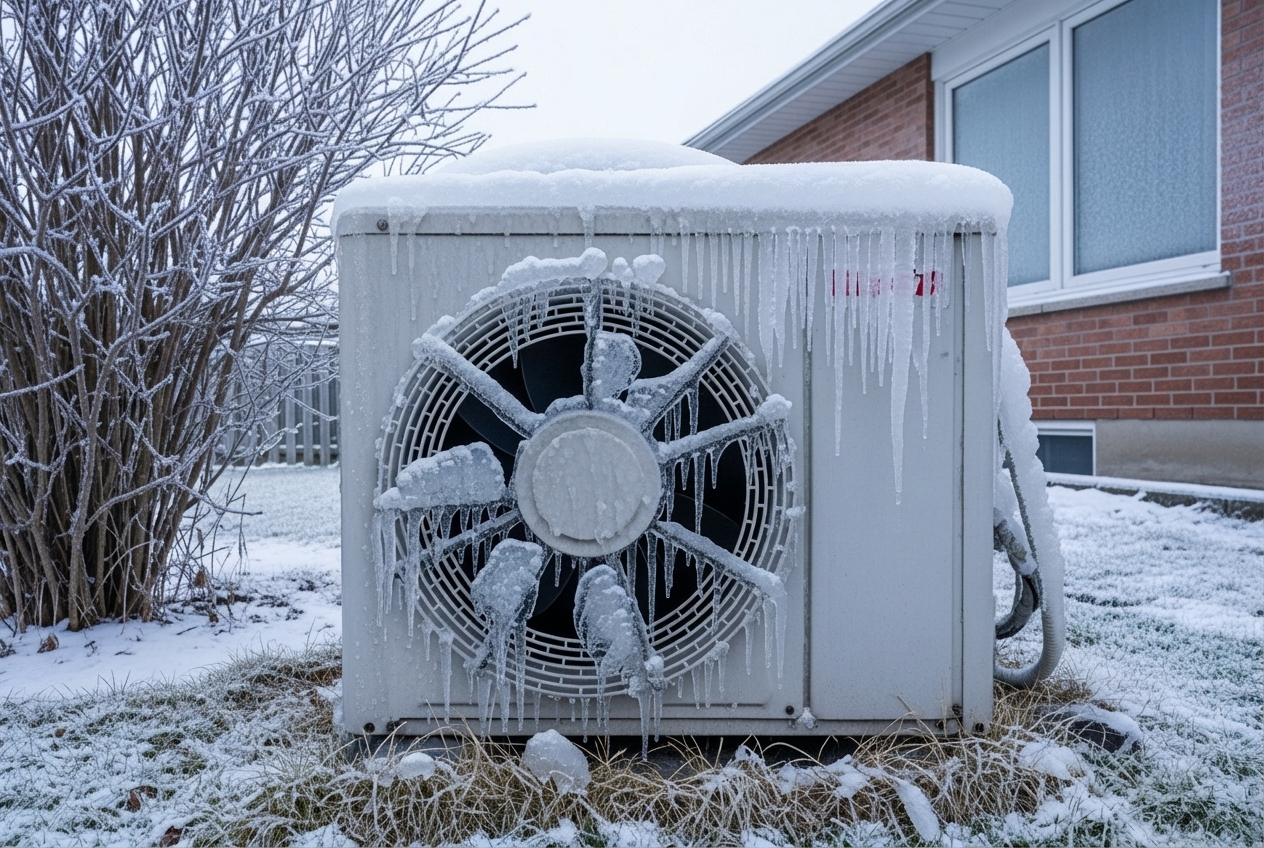

During the freezing temperatures of the peak January to February Nova Scotia winter heating season, frost naturally accumulates on the outdoor unit's coils. To prevent this frost from turning into a solid block of ice, the commercial heat pump will periodically enter a defrost cycle. When this happens, a reversing valve forcefully shifts the flow of pressurized refrigerant. This shift creates a very noticeable, temporary whooshing sound, followed by a few minutes of cooler air circulating indoors. Frequent defrost cycles are a completely normal and necessary feature of operating heat pumps in a maritime winter climate.

However, if you hear a constant, strained hissing or a high-velocity whoosh that never stops, you are likely dealing with a severe airflow restriction. This happens when the blower motor is forced to pull or push air through blocked pathways, such as heavily clogged MERV 13 commercial filters, closed fire dampers, or obstructed return registers. Restricted airflow forces the system to work much harder, drastically reducing efficiency and shortening the lifespan of the equipment. If you suspect an airflow blockage, our team always advises that troubleshooting a system that isn't working efficiently starts with verifying that all commercial filters are clean and registers are open.

Why Prompt Diagnosis Prevents Costly Business Downtime

In a commercial setting, ignoring a strange noise is a gamble that rarely pays off. The cascading effects of mechanical neglect can quickly escalate a minor acoustic annoyance into a major operational crisis, sometimes resulting in 48-hour to 72-hour downtime windows. A failing blower motor bearing, if left to grind, will eventually seize. When the motor seizes, it stops moving air. Without airflow, the indoor coils can freeze solid, the compressor can suffer fatal liquid slugging, and your entire building will be left freezing in the middle of winter.

Routine inspections and deep cleaning are the most effective ways we identify wear and tear before it ever becomes audible. For instance, during a recent fall maintenance visit, one of our service technicians performed a professional and thorough inspection and deep cleaning on a local facility's 15-ton heat pump. By meticulously checking the blower assembly and electrical contacts, the technician was able to provide the facility team with valuable information on product care and features, ensuring the system was fully prepared for the heavy winter load ahead.

Presidential Ventilation brings extensive commercial expertise to every service call, accurately diagnosing mechanical issues to prevent catastrophic failures and minimize costly business downtime. By enrolling in a proactive preventive maintenance plan, you ensure that skilled technicians are regularly monitoring the acoustic and mechanical health of your equipment in Mount Uniacke commercial facilities. Keeping business operations running smoothly without unexpected HVAC interruptions is always more cost-effective than emergency repairs.

Leveraging Commercial Rebates for Electrical and Motor Replacements

If an acoustic diagnosis reveals that your system requires a major electrical overhaul or a complete blower motor replacement, it is important to recognize that these are significant commercial investments. Upgrading heavy-duty 3-phase motors or replacing aging commercial air handlers requires careful financial planning.

Fortunately, our team regularly helps facility managers navigate the fact that they do not always have to bear the entire burden of these upgrades alone. Commercial rebates and provincial energy incentives are frequently available for businesses that choose to upgrade to high-efficiency ECM (Electronically Commutated Motor) technology or install entirely new, energy-saving heat pump systems. These rebates are designed to encourage commercial entities to reduce their overall electrical consumption and carbon footprint.

If your system in Mount Uniacke commercial facilities is diagnosed with a terminal motor failure, your next step should be consulting with our commercial HVAC experts to navigate the available Efficiency Nova Scotia rebate programs. A knowledgeable contractor can help you select replacement equipment that not only restores quiet reliability to your building but also qualifies for maximum financial incentives, offsetting a portion of your capital expenditure.

Frequently Asked Questions About Commercial Heat Pump Acoustics

Why is my commercial heat pump making a loud grinding noise?

A loud grinding noise is almost always caused by blower motor bearing failure or severe metal-on-metal friction inside the air handler. When the internal lubrication breaks down, the spinning components physically grind against each other. Because this indicates an imminent mechanical failure, you should schedule immediate professional service to prevent the motor from seizing completely.

What does a bad blower motor sound like?

A failing blower motor typically produces harsh screeching, deep grinding, or heavy electrical humming sounds. The screeching indicates bearing failure, while a loud, strained hum suggests the motor is receiving high-voltage electrical current but is physically stuck and unable to spin. Both sounds are serious warnings that require a licensed technician.

Is it normal for heat pump ductwork to pop?

Yes, minor popping and pinging in commercial ductwork is a normal result of thermal expansion. As the 24-gauge sheet metal rapidly heats up from the supply air and then cools down when the system shuts off, the metal flexes and pops. It only becomes a concern if the noise is excessively loud, continuous, or accompanied by visible ductwork buckling, which points to severe pressure imbalances.

Why is my commercial HVAC unit rattling?

Commercial HVAC units vibrate heavily, which can cause access panels, internal screws, and unseated air filters to vibrate loose and rattle over time. Another common culprit is a failing electrical contactor, which produces a rapid, buzzing rattle as it struggles to maintain an electrical connection. A professional technician can quickly tighten hardware and diagnose electrical vibrations.

Can I diagnose a buzzing commercial heat pump myself?

No, you should never attempt to diagnose a buzzing commercial heat pump yourself. A distinct electrical buzz usually indicates high-voltage issues, such as a failing capacitor, a stuck contactor, or a shorted wire. Commercial systems utilize dangerous 3-phase 460V power, and all electrical diagnostics must be handled by a licensed professional to ensure safety.

Restore Quiet and Reliability to Your Facility Today

When you are identifying the source of strange noises in your commercial ducted heat pump, distinguishing between harmless thermal expansion and a dangerous mechanical failure should never be left to guesswork. Our team at Presidential Ventilation Systems Ltd. knows that while the popping of ductwork is a normal part of heating a large building, grinding motors and rattling electrical components are serious threats to your facility's operational uptime.

This guide is designed to provide a clear, safety-first auditory baseline, but nothing replaces the trained ear of a licensed professional. If your system is producing alarming sounds, it is time to have an expert assess the equipment, secure loose hardware, and ensure your electrical components and motors are running safely. Reach out to our commercial HVAC specialists today to diagnose those concerning sounds and explore available commercial rebates if a high-efficiency replacement is the best path forward for your business.
