Addressing the 100-Amp Amperage Barrier for Modern Heating

You want to upgrade your home's heating system before the harsh winter heating season hits, but a major roadblock stands in the way: your electrical panel. Your current system simply lacks the capacity to power modern, high-efficiency equipment. When planning this transition, understanding the real cost variables of upgrading a 100-amp panel for a new heat pump is the crucial first step to getting your home ready.

Older homes were built during an era when daily electrical demands were significantly lower. Today, attempting to add high-draw HVAC equipment to an aging 100-amp service creates a physical and electrical bottleneck. The panel often lacks the physical space for new double-pole breakers, and the main service simply cannot safely supply the required amperage. Instead of searching for unpredictable flat rates, homeowners must look closely at the physical, site-specific variables that dictate the true scope of the electrical work required for their unique property.

Fortunately, overcoming this amperage barrier is a highly manageable process when you understand what goes into it. Whether you are exploring different heat pump systems or looking into flexible heat pump financing options, knowing the specific structural and electrical factors at play ensures you can plan your upgrade without unexpected surprises.

Why Cold-Climate Heat Pumps Overwhelm Standard 100-Amp Panels

A standard 100-amp electrical service is often already operating near its maximum safe capacity just running your daily household necessities. When you factor in an electric range, a clothes dryer, a hot water heater, and general lighting, there is very little headroom left. Adding a modern heating system to this delicate balance requires a thorough evaluation of your home's energy consumption.

The Draw of Auxiliary Heating Elements

In regions like Mount Uniacke NS, the climate demands heavy reliance on high-capacity cold-climate models. These systems are incredibly efficient, but they operate differently than standard air conditioners. During severe cold snaps, the system relies on auxiliary or backup electric resistance heating elements to maintain indoor comfort.

The sudden spike: When these backup heaters engage, they draw a massive amount of amperage. A cold-climate heat pump often requires a dedicated 30- to 50-amp circuit. If your panel only has 100 amps of total capacity, dedicating half of it to a single appliance leaves the rest of your home severely underpowered, leading to tripped breakers and potential safety hazards.

Household Appliance Load Calculations

Before any new heating equipment can be installed, the Canadian Electrical Code requires a professional load calculation. This calculation is not a simple guess; it is a strict mathematical formula that determines whether your existing service can handle the new demand.

• Electric Range / Oven — Typical Amperage Draw: 40 - 50 Amps — Impact on a 100-Amp Panel: Consumes nearly half the available capacity when in full use.

• Electric Clothes Dryer — Typical Amperage Draw: 30 Amps — Impact on a 100-Amp Panel: Creates a heavy concurrent load during daily chores.

• Electric Water Heater — Typical Amperage Draw: 30 Amps — Impact on a 100-Amp Panel: Cycles on and off, creating unpredictable baseline spikes.

• Cold-Climate Heat Pump — Typical Amperage Draw: 30 - 50 Amps — Impact on a 100-Amp Panel: Pushes a fully loaded 100-amp panel immediately over its safe limit.

Balancing these demands means strictly adhering to load limits. A professional load calculation evaluates continuous versus non-continuous loads to ensure your home remains safe and compliant, which is exactly why a service upgrade becomes a non-negotiable requirement for older properties.

Evaluating the Service Mast and Exterior Connection Variables

The complexity of an electrical upgrade extends far beyond the metal box in your basement. For homes with overhead electrical services, the exterior connection points dictate a massive portion of the project's scope. The service mast—the metal pipe extending above your roofline—and the weatherhead must be robust enough to support modern infrastructure.

Overhead Wire Limitations

Upgrading from 100 amps to 200 amps requires physically thicker, heavier wire to carry the increased electrical current from the utility pole to your home. The existing wires running to your house are sized specifically for 100 amps. Upgrading means coordinating with the local utility company to disconnect the power, drop the old lines, and connect the new, heavier gauge wire. This process requires precise timing and specialized labor to minimize the time your home is without power during the winter heating season.

Weatherhead and Mast Degradation

Because a 200-amp service cable is significantly heavier, the structural integrity of your service mast is critical. Older masts often suffer from decades of environmental exposure.

• Rust and corrosion: Weakened metal cannot support the tension of heavier wires, especially during high winds or ice storms.

• Inadequate height: Nova Scotia Power guidelines mandate strict height requirements for overhead lines crossing yards or driveways. An older, shorter mast may need to be entirely rebuilt to meet current clearance codes.

• Physical damage: Bent or compromised masts require complete structural reinforcement or replacement before new wiring can be safely attached.

The physical condition of these exterior connection points directly impacts the labor and materials required, making it one of the most significant variables in the overall scope of your upgrade.

Panel Relocation and Clearances Under the Canadian Electrical Code

Safety regulations heavily influence the internal scope of an electrical upgrade. The Canadian Electrical Code (CEC) mandates specific working clearances around an electrical panel to ensure technicians and first responders can access the breakers safely in an emergency. Older 100-amp panels were frequently installed in locations that no longer meet these modern safety standards.

Working Space Requirements

The code generally requires a clear working space of at least one meter in front of the panel, with proper headroom and side-to-side clearance. In many older homes in Mount Uniacke NS, original panels were tucked into tight closets, low-clearance crawlspaces, or directly above laundry sinks. If your current panel violates these modern spacing tests, the new 200-amp panel cannot legally be installed in the same spot. It must be physically relocated to a compliant wall, which significantly alters the labor variables of the project.

Extending Branch Circuits

When a main panel is relocated to achieve code compliance, every single electrical circuit in your home must be re-routed to reach the new location.

The meticulous labor involved: This process often involves installing large junction boxes where the old panel used to sit, and then carefully running new wire extensions to the compliant location. Re-routing household wiring requires meticulous labor, specialized materials, and precise labeling to ensure every light, outlet, and appliance functions perfectly once the power is restored.

Trenching and Underground Lateral Complexity

For properties that receive their power underground rather than from an overhead pole, the variables shift dramatically. An underground lateral upgrade presents distinct physical challenges that require careful planning and specialized equipment.

Soil and Rock Obstacles

Upgrading an underground service requires laying new, thicker conduit and wiring from the street to the meter base on your house. This almost always requires trenching. The local terrain conditions in Mount Uniacke NS dictate the speed and method of this excavation.

• Bedrock and dense clay: Hard, rocky soil drastically increases excavation labor and requires heavy machinery.

• Paved surfaces: Trenching under or through existing asphalt driveways or concrete walkways requires specialized cutting and subsequent restoration.

• Landscaping: Mature trees, retaining walls, and custom landscaping act as physical site barriers that must be carefully navigated or temporarily removed.

Distance from the Utility Pole

The length of the run from the utility connection point to your home heavily affects material requirements. A home sitting close to the road requires significantly less heavy-gauge copper or aluminum wire than a home set hundreds of feet back on a rural lot. Furthermore, public utility locates must be coordinated before any digging begins to ensure the trench path safely avoids existing water, sewer, or telecommunication lines.

The Value of Coordinating HVAC and Electrical Installation

One of the most common pitfalls homeowners face is treating the heat pump installation and the electrical upgrade as two entirely separate projects managed by different, uncoordinated contractors. This fragmented approach often leads to severe scheduling conflicts, miscommunication regarding equipment specifications, and extended periods without adequate heating.

Avoiding Project Delays

Simultaneous coordination prevents project delays. When the same team oversees both aspects, there is no downtime between electrical readiness and HVAC commissioning. The electrical system is sized perfectly for the specific heating unit being installed. During a summer installation replacing an old forced-air oil burner, one homeowner encountered unexpected issues with their electrical panel upgrade. By having a coordinated team on-site, the technician quickly resolved the electrical concerns, ensuring the central heat pump system was installed seamlessly and functioned perfectly.

Seamless Safety Inspections

Working with a company like Presidential Ventilation means you benefit from seamless coordination for both HVAC installations and electrical requirements. This unified approach guarantees the entire system meets the Canadian Electrical Code without multi-contractor delays. Municipal and utility inspections are coordinated efficiently, ensuring your home is heated efficiently and safely during the winter heating season. This expert oversight resolves unforeseen electrical concerns smoothly, allowing you to enjoy your new ductless heat pumps without administrative headaches.

Tying Electrical Upgrade Compliance to Provincial Rebates

Investing in a comprehensive electrical upgrade is not just about safety; it is often the mandatory gateway to unlocking substantial provincial HVAC incentives. Programs designed to encourage energy efficiency require strict adherence to all local building and electrical codes.

Efficiency Nova Scotia Requirements

Efficiency Nova Scotia and similar rebate programs mandate the use of approved, certified contractors for all qualifying installations. If a homeowner attempts DIY electrical work or hires a non-certified individual, they can instantly disqualify themselves from receiving any heat pump rebates.

The proof of compliance: To secure these incentives, you must provide documentation and certification from licensed professionals proving the electrical capacity supports the high-efficiency equipment. While evaluating the breaker panel upgrade cost variables in Mount Uniacke NS, it is vital to remember that a code-compliant installation is an investment that is heavily offset by these targeted incentives and long-term energy savings.

Managing the Physical Scope of Your Service Upgrade

Ultimately, the variables of an electrical upgrade are entirely dependent on your home's unique physical layout and existing infrastructure. There is no universal template, which is why blind estimates often fall short of reality.

Professional Site Assessments

A professional site assessment is critical for mapping out the exact variables for your specific property. During this evaluation, an expert will physically inspect the service mast, perform a detailed load calculation, and measure panel clearances to determine exactly what the Canadian Electrical Code requires for your home.

This thorough approach is especially vital during broader home improvements. During a major summer renovation on a large house, one homeowner needed to replace all their old ducting alongside a new system. By mapping out the electrical requirements early, the team replaced the ductwork and installed a top-of-the-line heat pump efficiently, resulting in an excellent installation. While the structural and electrical variables can seem complex, the process is highly manageable with the right professional guidance. Taking the time to schedule an electrical assessment ensures your home is fully prepared for the winter heating season.

Preparing Your Home's Electrical System for Reliable Comfort

Understanding the real cost variables of upgrading a 100-amp panel for a new heat pump is the first and most important step toward achieving a safe, code-compliant installation. The complexity of the project hinges on physical realities—from the condition of your exterior service mast to the location of your current panel and the specific amperage draw of your new heating system.

You do not have to navigate these structural, electrical, and rebate-related complexities alone. The right professional team will evaluate your property in Mount Uniacke NS, map out a clear path forward, and ensure every detail meets strict safety standards. Explore your options today and take the next confident step toward a warmer, more efficient, and fully modernized home.

Frequently Asked Questions

Can a 100-amp panel run a heat pump?
In most cases, a standard 100-amp panel cannot safely run a modern cold-climate heat pump alongside daily household appliances. These heating systems require dedicated 30- to 50-amp circuits, which easily overload a 100-amp service when combined with electric stoves, dryers, and water heaters. A professional load calculation is required to determine your exact capacity.

What physical factors complicate an electrical panel upgrade?
The complexity is driven by site-specific physical barriers. Degraded exterior service masts, the need to relocate the panel to meet modern clearance codes, and trenching through rocky soil or paved driveways all add labor and material requirements to the project.

Do I need to upgrade my electrical service for a heat pump?
If your home currently has a 100-amp service, an upgrade to 200 amps is almost always necessary to meet the Canadian Electrical Code safely. Adding a high-draw heating system without upgrading can lead to tripped breakers, overloaded circuits, and severe fire hazards.

How does panel location affect upgrade complexity?
Modern safety codes require at least one meter of clear working space around an electrical panel. If your current panel is located in a tight closet or low-clearance basement, the new panel must be relocated, which requires meticulously extending and re-routing every existing electrical circuit in your home.

Are electrical upgrades eligible for heat pump rebates?
While the electrical upgrade itself may not have a standalone rebate, a code-compliant electrical system is a strict prerequisite for unlocking provincial heat pump incentives. Non-certified or DIY electrical work will instantly disqualify your new heating system from programs like Efficiency Nova Scotia.

What is the difference between an overhead and underground service upgrade?
An overhead upgrade involves replacing the exterior service mast, weatherhead, and aerial utility wires. An underground lateral upgrade requires excavating a trench from the utility connection to the house to lay thicker conduit, which introduces variables like rocky soil, landscaping removal, and utility locates.

The Two-Story Cooling Dilemma: Why Your Downstairs is Freezing

Are you tired of wearing sweaters on the main floor while sweating in your upstairs bedrooms? At Presidential Ventilation Systems Ltd., our team frequently talks to homeowners in Mount Uniacke and across the province who are dealing with this exact issue. Navigating summer heat pump settings for two-story Nova Scotia homes can feel like a frustrating puzzle. You turn the system on, hoping for relief, only to find the living room turning into an icebox while the second floor remains uncomfortably warm. This is a common challenge for multi-level homeowners, and standard cooling advice often fails to address the root cause.

Finding the right balance requires a different approach to your thermostat and airflow settings. If you need help optimizing your heat pumps or want to explore a targeted ductless heat pump strategy, we can help.

Understanding the Stack Effect in Multi-Level Homes

To fix the problem of uneven cooling, you first have to understand why it happens. In our experience servicing homes throughout the region, the primary culprit is a physical phenomenon known as the "stack effect." In simple terms, heat naturally rises. As the sun beats down on your roof and upper floor, the hot air inside your home expands and moves upward, while the heavier, cooler air sinks to the lowest level.

Because your main heat pump indoor unit is typically installed on the ground floor, it registers the temperature of that sinking cold air. Once the main floor reaches your target temperature, the system shuts off. Meanwhile, a typical 4 to 8 degree temperature differential has formed between the main floor and the upstairs bedrooms, leaving the upper level completely unconditioned.

This dynamic becomes much worse during a Nova Scotia humid summer. With high coastal humidity levels often exceeding 70 to 80 percent, the moisture trapped in the upper floors makes the air feel significantly hotter and stickier than the thermostat actually reads. Simply dropping the main floor thermostat temperature won't push enough cold air upstairs; it will only freeze out anyone sitting in the living room while the humidity upstairs remains untouched.

• 22°C — Actual Upstairs Temperature: 26°C — Perceived Upstairs Temp (With 75% Humidity): Feels like 29°C

• 20°C — Actual Upstairs Temperature: 25°C — Perceived Upstairs Temp (With 75% Humidity): Feels like 27°C

• 18°C — Actual Upstairs Temperature: 24°C — Perceived Upstairs Temp (With 75% Humidity): Feels like 26°C

The takeaway: You cannot overcome the stack effect with temperature adjustments alone. You have to manage the airflow and the moisture.

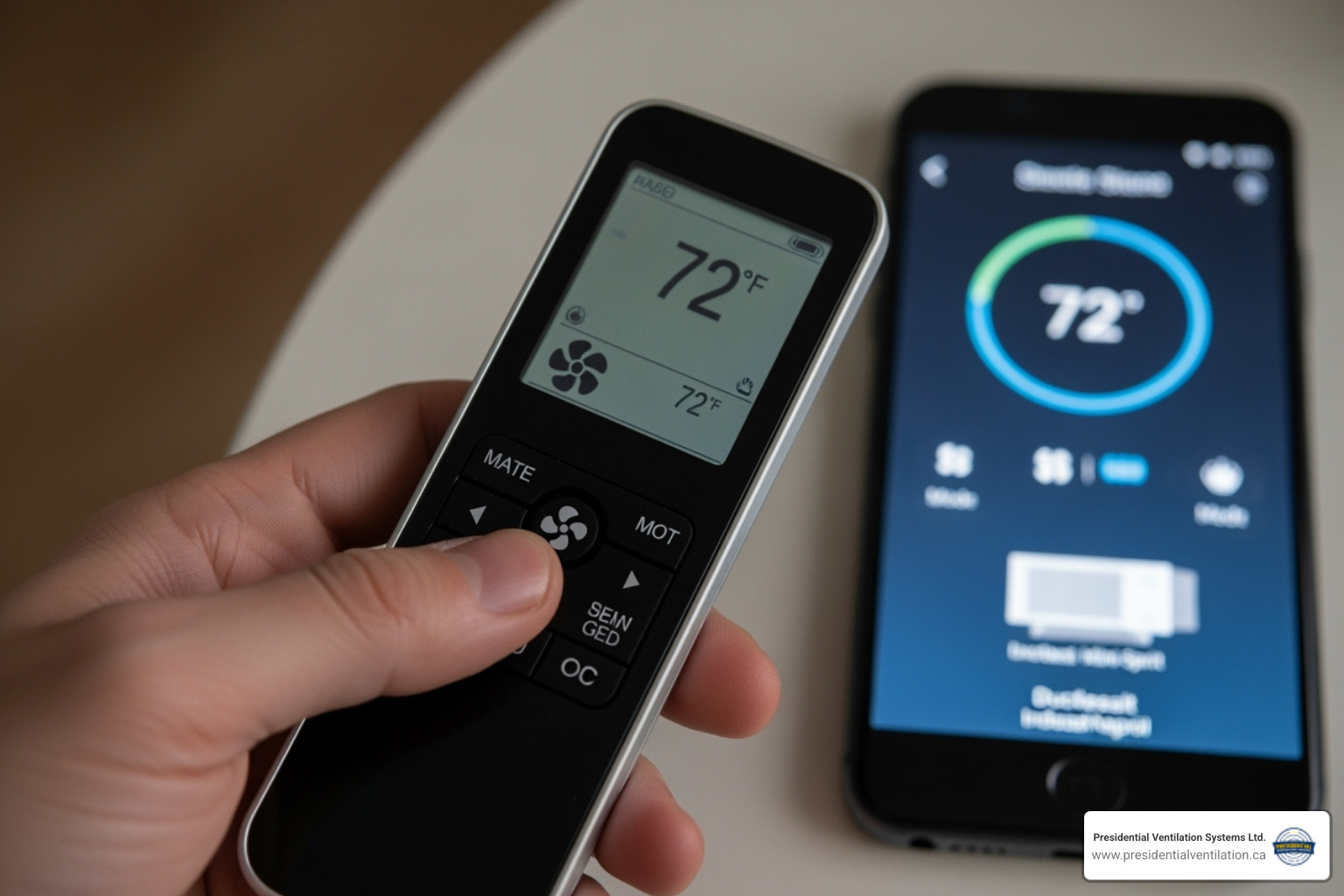

The Best Heat Pump Settings for Summer (Quick Reference)

If you want to balance the temperatures across both floors without driving up your energy bills, you need to adjust how your system operates. When our technicians perform seasonal tune-ups, we always recommend these highly effective summer heat pump settings for two-story homes:

• Mode: Switch from "Cool" to "Dry" mode during high humidity days. This prioritizes moisture removal over sheer temperature drops.

• Fan Speed: Set the fan to Medium or High instead of "Auto." Continuous air circulation is mandatory for mixing the air between floors.

• Temperature: Keep the set point moderate, ideally between 20°C and 22°C. Drastically low settings will not cool the upstairs faster.

• Vents and Doors: Keep interior bedroom doors open during the day to promote better airflow and prevent hot air from getting trapped in isolated zones.

Implementing these four adjustments will immediately change how your system conditions the air, making the entire house feel more comfortable.

Dry Mode vs. Cool Mode: Managing Coastal Humidity

Many homeowners assume that "Cool Mode" is the only option for summer comfort. While it works well during dry heat waves, our team frequently reminds customers that it is often the wrong choice for a Maritime climate. Cool Mode focuses strictly on dropping the air temperature until the thermostat is satisfied. Once the room hits the target temperature, the compressor shuts off, often before it has had a chance to remove the excess humidity from the air.

This is where "Dry Mode" becomes your secret weapon. When you select Dry Mode, the system runs the compressor at lower, more consistent speeds. Instead of blasting freezing air into the room, it pulls the indoor air across the cold evaporator coil just enough to extract the moisture, draining it outside. By lowering the humidity, you reduce the perceived temperature. The air feels crisp and comfortable, making the upstairs tolerable without having to freeze out the downstairs.

Improper mode usage is a pattern we see often and is the root cause of many common summer heat pump problems. One local homeowner recently reached out to us during early fall with concerns about an existing heat pump system not installed by us. Our technician explained the system's pros and cons, specifically highlighting how running it in the wrong mode was driving up their bills and failing to dehumidify the space. By offering advice on more efficient running—like utilizing Dry Mode—the customer found immediate relief and a better understanding of their system.

When to Switch Modes

Knowing when to toggle between these settings is key to maintaining comfort during a Nova Scotia humid summer.

• Use Cool Mode: During intense, dry heat waves where the primary goal is rapid temperature reduction.

• Use Dry Mode: During muggy, overcast, or highly humid summer days where the air feels heavy and sticky, even if the actual temperature isn't extreme.

Airflow Strategies: Using Fan Speeds to Mix Stratified Air

The second most critical adjustment we recommend for summer heat pump settings for two-story homes is your fan speed. The default setting on almost every thermostat is "Auto." In Auto mode, the indoor fan only blows air when the outdoor compressor is actively cooling. The moment the main floor reaches the target temperature, the fan stops.

When the fan stops, the air immediately begins to stratify—the hot air rises to the second floor, and the cold air settles on the main floor. To break this cycle, you must manipulate your fan settings to continuously force cooler air upstairs.

1. Turn off Auto mode: Switch your fan setting to "On" or select a continuous speed on your remote.

2. Select Medium or High speed: A low fan speed doesn't have the velocity to push conditioned air up a stairwell. Medium or high speeds create the necessary air pressure to circulate the air throughout the house.

3. Keep interior doors open: Closed bedroom doors act as dams, blocking the flow of conditioned air. Keep them open as much as possible to allow the continuous fan to mix the air across the entire upper level.

4. Monitor the difference: Within a few hours of running the fan continuously, you should notice the temperature gap between the floors beginning to narrow.

We've seen countless homeowners worry about the cost of running the fan constantly. The truth is, the indoor blower motor uses very little electricity compared to the outdoor compressor. The cost of running the fan is minimal, and it often saves you money by preventing the compressor from having to turn on as frequently.

The Danger of Overworking Your Compressor

When the upstairs is sweltering, the natural reaction is to walk over to the main floor thermostat and crank the temperature down to 16°C. This is one of the worst things you can do to your system.

The Problem: Setting the thermostat drastically low does not make the heat pump blow colder air; it only forces the compressor to run continuously in a desperate attempt to reach an impossible goal. Because the cold air is heavy, it pools around the indoor unit. The thermostat eventually reads 16°C, but the upstairs is still hot.

The Cause: When a heat pump runs non-stop at maximum capacity, the indoor coil gets incredibly cold. If the airflow is restricted or the system is low on refrigerant, the condensation on the coil can freeze into a solid block of ice. Once the coil freezes, the system stops cooling entirely. When it finally thaws, it can cause severe water damage to your walls or flooring.

The Solution: Keep your temperature settings reasonable (20°C to 22°C) and rely on your fan speeds and Dry Mode to manage comfort. Overworking the system shortens its lifespan and places unnecessary strain on your home's electrical system. This is why routine heat pump maintenance is so critical. Another customer called us when their heat pump required an inspection and deep clean after a tough season. Our technician provided a thorough service and valuable product information about how forcing the system to run constantly had strained the unit. The heat pump was inspected, cleaned, and tested to their satisfaction, preventing a major breakdown just by addressing the strain on the system.

When Settings Aren't Enough: Multi-Zone Upgrades and Efficiency Rebates

Sometimes, despite using the perfect summer heat pump settings for two-story homes, a single main-floor unit simply cannot overcome the home's layout. If your stairwell is narrow, or if your upper floor gets direct afternoon sun, one unit may never push enough conditioned air to the second story.

In these cases, whether you are dealing with new residential construction, a commercial space, or a retrofitted older home, upgrading to a multi-zone ductless system is the most effective solution. By installing a dedicated indoor head in the primary upstairs bedroom or hallway, you can provide direct cooling to the second story without freezing the main floor. This creates true zoned comfort, allowing you to control the climate exactly where you need it.

Upgrading to highly efficient multi-zone systems often qualifies for local rebates through Efficiency Nova Scotia. If you are transitioning from an older oil system to a whole-home heat pump, you may also need to consider electrical panel upgrades to handle the new equipment safely.

As Maritime climate experts, our team at Presidential Ventilation Systems understands exactly why standard HVAC setups fail in multi-level homes. We design systems that actually work for local homeowners, ensuring that your equipment is properly sized and strategically placed to combat the stack effect.

Frequently Asked Questions About Summer Heat Pump Operation

What is the best setting for a heat pump in the summer?

The best setting for a heat pump in the summer is typically between 20°C and 22°C, paired with a continuous medium or high fan speed. During humid days, switching from Cool Mode to Dry Mode will help remove excess moisture from the air. This combination keeps the home comfortable without putting unnecessary strain on the compressor.

Why is my upstairs so hot when the heat pump is on downstairs?

Your upstairs is hot because of the stack effect, where hot air naturally rises and cold air sinks. Because the indoor unit is on the main floor, it cools the lower level quickly and shuts off before the conditioned air can reach the second story. Running your fan continuously can help mix this stratified air.

Should I use dry mode or cool mode in high humidity?

You should use dry mode in high humidity. Dry mode runs the compressor at a lower speed to extract moisture from the air without drastically dropping the temperature. This makes the air feel cooler and more comfortable, which is especially effective during a Nova Scotia humid summer.

How do you balance cooling in a two-story house?

You balance cooling by keeping interior doors open, running the indoor fan continuously on medium or high, and using dry mode to manage humidity. If these adjustments don't work, you may need to install a secondary ductless unit upstairs to create a multi-zone cooling system.

Does running the heat pump fan constantly use a lot of electricity?

No, running the indoor fan constantly uses very little electricity compared to the outdoor compressor. In fact, keeping the fan on helps circulate the air more evenly, which can prevent the compressor from having to turn on as frequently, potentially saving you money on your overall energy bills.

Can setting my heat pump too low cause it to freeze up?

Yes, setting your heat pump drastically low (like 16°C) forces the compressor to run non-stop. This continuous operation, especially if your air filters are dirty or airflow is restricted, can cause the indoor coil to drop below freezing, turning the condensation into a block of ice and stopping the cooling process entirely.

Keep Your Two-Story Home Consistently Cool This Summer

Managing the temperature in a multi-level home doesn't have to be a daily struggle. By understanding the stack effect and utilizing the right summer heat pump settings for two-story homes—specifically leveraging Dry Mode and continuous fan speeds—you can combat the heavy coastal humidity. Remember to avoid overworking your compressor with extreme temperature drops. If you are still struggling with uneven temperatures across your floors, reach out to our team at Presidential Ventilation Systems Ltd. for a comprehensive system evaluation or a routine tune-up to ensure your home stays comfortable all season long.
