The Hidden Challenge of Heating Bedford's Most Airtight New Builds

You have just finalized the blueprints for a highly insulated, incredibly efficient new build, but there is a hidden mechanical issue that catches many homeowners and builders off guard. Standard residential HVAC duct sizing almost always causes short-cycling and inadequate fresh air exchange in highly airtight, low-load environments. Designing HVAC Ductwork for R-2000 Certified Homes in Bedford, NS, requires a completely different approach to airflow, static pressure, and ventilation right from the initial blueprint stage.

When you are dealing with Bedford, NS new builds that meet strict energy efficiency certifications, the critical decision point happens long before the drywall goes up. You must plan for custom ductwork and integrate strict mechanical ventilation standards during the early pre-construction phase. If you are exploring ducted heat pump systems for your upcoming project, relying on custom sheet metal fabrication and installation is the only way to ensure the system performs as intended.

Off-the-shelf ducting simply cannot achieve the low-velocity airflow required for these specialized, low-load environments. Generic duct fittings create turbulence and pressure bottlenecks, forcing the system to work harder while delivering uneven temperatures. Proper planning prevents costly retrofits later, ensures the home meets strict energy certification requirements, and guarantees that the indoor air remains fresh and comfortable year-round.

Why Standard HVAC Systems Short-Cycle in Low-Load Environments

To understand why traditional ductwork fails in high-efficiency homes, you first need to define what a "low-load" environment actually means. In the context of R-2000 certification airtightness and ventilation standards, a low-load home features exceptional insulation, high-performance windows, and virtually zero natural drafts. Because the home loses very little heat to the outside, the actual heating and cooling demand—the "load"—is incredibly small compared to a standard house of the same square footage.

This creates a mechanical reality that leads directly to short-cycling. When an oversized HVAC system is paired with standard ductwork, it blasts high-velocity air into the room and satisfies the thermostat's temperature request in a matter of minutes. The system shuts off before the air is properly filtered, dehumidified, or exchanged with fresh outside air.

The long-term impacts of short-cycling are significant:

• Premature equipment wear: The constant starting and stopping places immense strain on blower motors and compressors, significantly reducing the lifespan of the equipment.

• Stagnant indoor air: Because the system does not run long enough to cycle air through the filters, dust and allergens accumulate in the living space.

• Temperature swings: Rooms experience rapid bursts of heat followed by long periods of stagnation, creating noticeable hot and cold spots.

• Excessive noise: High-velocity air rushing through standard ductwork creates a disruptive rushing sound, which is especially noticeable in ultra-quiet, highly insulated homes.

To solve this, low-load homes require low-velocity, continuous circulation. The air needs to move gently and persistently, maintaining an even temperature while constantly filtering and exchanging the indoor air.

The Limits of Rule-of-Thumb Sizing

Traditional HVAC sizing calculations often rely on a simple "square footage per ton" rule of thumb. While this might work for older, drafty homes, it results in massively oversized systems when applied to R-2000 builds. An oversized system is the primary catalyst for short-cycling. This highlights the absolute necessity of precise Manual J (load calculation) and Manual D (duct design) calculations during the design phase. These mathematical models account for the home's specific insulation values, window placements, and airtightness, ensuring the equipment and the ductwork are perfectly matched to the home's actual low-load requirements.

Meeting R-2000 Airtightness and Ventilation Standards

The core philosophy behind the R-2000 standard is simple but unforgiving: "build it tight, ventilate it right." Because these homes are sealed off from natural drafts, they rely entirely on mechanical systems to provide breathable air. You cannot rely on leaky windows or unsealed rim joists to bring fresh air indoors.

Natural Resources Canada (NRCan) guidelines require continuous mechanical ventilation to maintain healthy indoor air quality. This means your ductwork must do more than just deliver heat; it must serve as the lungs of the home. Properly designed ductwork must seamlessly integrate with HRV systems (Heat Recovery Ventilators) to distribute fresh air evenly without creating uncomfortable drafts.

• Air Exchange Method — Standard Construction: Incidental drafts and intermittent exhaust fans — R-2000 Certification: Continuous mechanical ventilation (HRV)

• Duct Integration — Standard Construction: Often separate or poorly integrated — R-2000 Certification: Engineered directly into primary ducting

• Airflow Velocity — Standard Construction: High-velocity, intermittent bursts — R-2000 Certification: Low-velocity, continuous circulation

Ventilation cannot be an afterthought bolted onto the system right before the drywall goes up. It must be engineered into the primary ducting system from day one. The return and supply plenums must be sized to handle the continuous, low-volume airflow of the HRV while simultaneously managing the heating and cooling loads of the primary heat pump. Meeting R-2000 certification airtightness and ventilation standards requires a holistic approach to the home's entire mechanical layout.

Managing Maritime Moisture: The Role of Continuous Air Exchange

Nova Scotia's cold, damp maritime climate demands precise moisture management and continuous ventilation in airtight R-2000 homes to prevent condensation and mold. The ambient humidity during our winters presents a unique challenge for Bedford, NS new builds. While the heavy insulation keeps the cold out, the airtight envelope also traps daily moisture inside.

Every time you cook a meal, take a shower, run the dishwasher, or simply breathe, you are introducing moisture into the indoor environment. In an older home, this moisture escapes through gaps in the construction. In an R-2000 home, that moisture hits the highly insulated exterior walls and, if not properly managed, turns into condensation. Over time, this trapped dampness leads to structural damage, peeling paint, and mold growth inside the wall cavities.

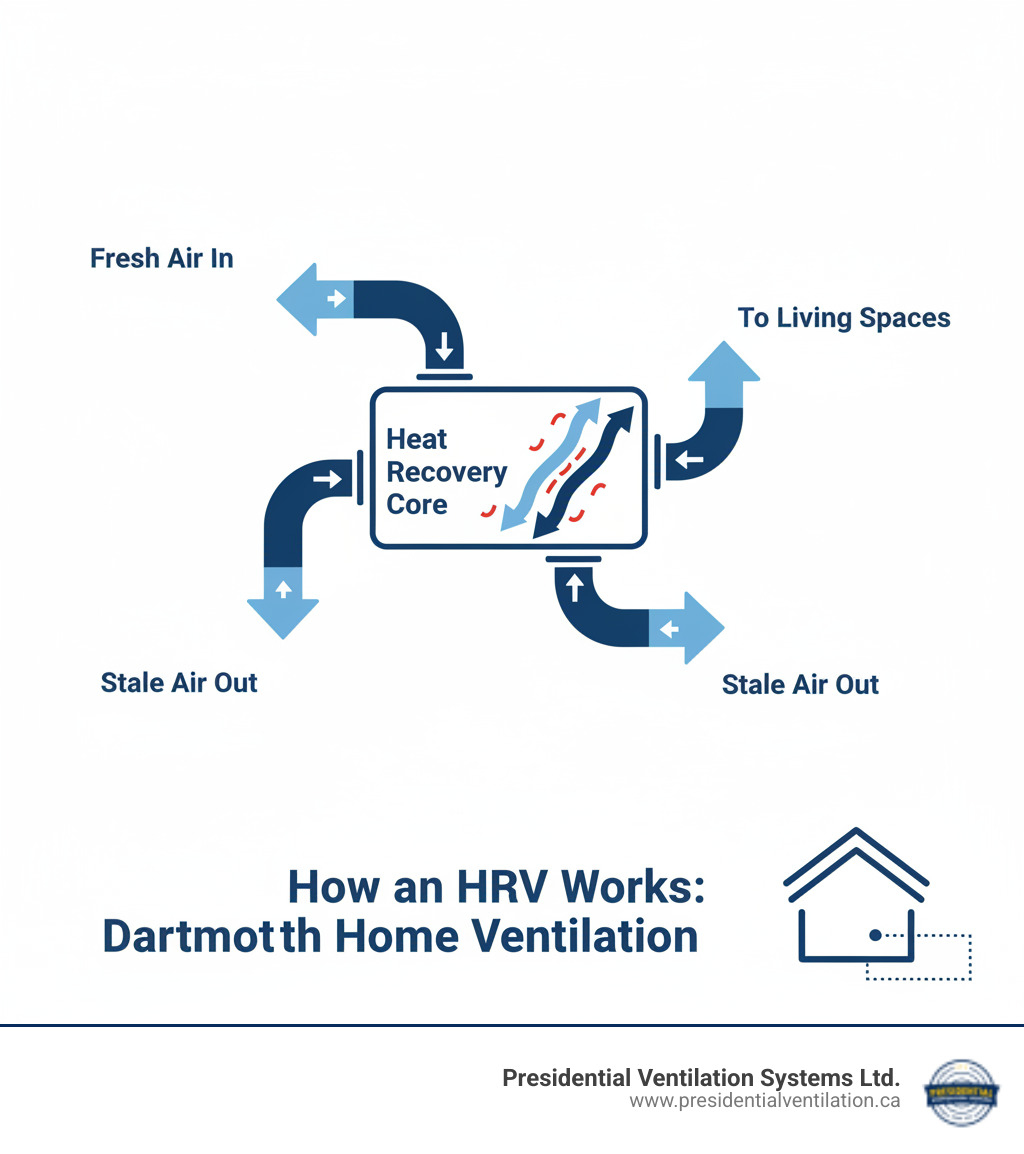

This is where a meticulously designed duct system proves its worth. By integrating an HRV into custom ductwork, the system continuously cycles damp, stale indoor air out of the house while recovering the heat from that exhausted air. It then uses that recovered heat to warm the fresh, dry air being pulled in from outside.

Standard, intermittently running HVAC systems fail to provide the continuous moisture management this climate demands. If the heat pump only runs for ten minutes an hour because the house is already warm, a standard duct system leaves the air stagnant for the remaining fifty minutes. Continuous air exchange is the only defense against Maritime moisture in a tightly sealed home.

The Necessity of Custom Sheet Metal for Precise Airflow

Achieving the exact static pressure and low-velocity airflow required for these homes is incredibly difficult with standard materials. Prefabricated, off-the-shelf duct components are designed for mass production, not precision. They often feature sharp angles, generic transition pieces, and standard diameters that do not align with the strict mathematical requirements of a low-load load calculation.

Our in-house sheet metal fabrication capabilities and specialized expertise in new construction HVAC design ensure strict compliance with R-2000 energy standards, meaning we never force standard ducting into custom homes. Custom sheet metal fabrication allows for precise transitions, custom-sized plenums, and optimized routing that eliminates airflow bottlenecks. When a duct system is tailored specifically to the home's blueprints, the air moves smoothly and quietly.

This precision directly addresses noise complaints, which are common in quiet, highly insulated homes. When you remove the ambient noise of traffic and wind through heavy insulation, a poorly designed duct system sounds like a jet engine. Custom fabrication allows for wider, low-profile ducting that moves the same volume of air at a much lower, quieter velocity.

Furthermore, having fabrication capabilities in-house prevents construction delays. We do not have to wait for a third-party supplier to ship a specialized fitting; our team fabricates exactly what the system needs, ensuring strict quality control and keeping the build on schedule, backed by our 30+ years experience in Nova Scotia new construction and sheet-metal fabrication.

Eliminating Airflow Bottlenecks

Airflow bottlenecks occur when air is forced through sharp turns or undersized fittings, creating turbulence. This turbulence increases the static pressure inside the ductwork. There is a direct correlation between smooth airflow and reduced energy consumption for blower motors. When custom fittings reduce turbulence, the heat pump's blower motor does not have to work as hard to push the air, which maximizes the energy efficiency of the entire system and extends the life of the equipment.

Coordinating Mechanical and Electrical Systems in Pre-Construction

Designing the ductwork is only one piece of the pre-construction puzzle. Modern low-load homes rely on advanced, continuous mechanical systems that require precise electrical planning. Ductwork routing and electrical panel planning must occur concurrently before the framing is finalized.

Here is how the coordination phase typically unfolds:

1. Blueprint Analysis: We review the architectural plans to identify the optimal pathways for the main duct trunks, ensuring they remain inside the conditioned envelope of the home whenever possible.

2. Load Calculations: We perform Manual J and Manual D calculations to determine the exact heating, cooling, and ventilation requirements for the specific R-2000 design.

3. Electrical Load Planning: We calculate the necessary amperage for the primary heat pump, the continuous HRV system, and any supplemental heating elements. This ensures the main panel is sized correctly from the start.

4. Coordinated Rough-In: Because we handle both mechanical and electrical trades, our teams route ductwork and pull wire simultaneously, avoiding conflicts inside the wall cavities and joist spaces.

Working with a contractor that understands both mechanical and electrical new construction phases creates immense efficiency on the job site. It eliminates the friction of coordinating multiple subcontractors and ensures that the new construction electrical installation perfectly supports the advanced HVAC equipment. Additionally, this integrated planning helps builders and homeowners maximize available construction and energy efficiency rebates by ensuring all systems meet the strict criteria required for those incentive programs.

Frequently Asked Questions About R-2000 HVAC Design

Why do standard HVAC systems fail in R-2000 homes?

Standard HVAC systems fail in R-2000 homes primarily due to short-cycling. Because these homes are incredibly well-insulated and airtight, their heating and cooling loads are very low. A standard, oversized system heats the small space too quickly and shuts off before it can properly filter the air or run the ventilation cycle, leading to poor indoor air quality and premature equipment wear.

How does custom ductwork improve ventilation in airtight homes?

Custom ductwork improves ventilation by allowing for precise control over static pressure and airflow velocity. Instead of forcing air through generic, restrictive fittings, custom sheet metal provides smooth, tailored pathways. This allows the system to continuously circulate fresh air from the HRV at a low, quiet velocity without creating drafts or noise.

What are the specific HVAC requirements for an R-2000 home?

The specific HVAC requirements for an R-2000 home include continuous mechanical ventilation, precise load calculations (Manual J and D), and highly efficient heating and cooling equipment. The system must be capable of managing indoor moisture and providing fresh air exchange 24/7, as the home's airtight envelope prevents any natural drafts from doing this work.

Do highly insulated homes absolutely require an HRV?

Yes, highly insulated homes absolutely require an HRV (Heat Recovery Ventilator). Without an HRV, an airtight home will trap moisture, odors, and indoor pollutants, leading to condensation, mold growth, and poor health outcomes. The HRV is essential for continuously exhausting stale air while bringing in fresh, pre-warmed outdoor air.

How do you size ductwork for a low-load home in Nova Scotia?

Sizing ductwork for a low-load home requires abandoning generic square-footage rules and relying on precise mathematical models. We use Manual J to determine the exact heat loss and gain of the home, and Manual D to design the ductwork based on the required airflow. This ensures the custom sheet metal is fabricated to deliver the perfect volume of air at the correct velocity.

Partnering with Bedford's New Construction HVAC Experts

Understanding exactly why standard HVAC designs fail in R-2000 homes is the first step to a successful, energy-efficient build. When you are constructing a home designed to meet the highest standards of airtightness and insulation, you cannot compromise on the mechanical systems that keep the indoor environment healthy and comfortable. The ductwork is the respiratory system of your new home, and it requires precision engineering from the very beginning.

With 30+ years experience in Nova Scotia new construction and sheet-metal fabrication, our team of approximately 70 skilled tradespeople provides the specialized in-house expertise required for these complex projects. Because we handle HVAC, ventilation, custom sheet metal, and electrical work, we ensure that every system is perfectly coordinated before the first wall is framed.

We encourage builders, general contractors, and homeowners to finalize their HVAC and ventilation plans early in the design process to avoid costly changes later. If you are planning an R-2000 or high-efficiency build, reach out to Presidential Ventilation Systems to request a free estimate and professional assessment for your upcoming new construction project.

Why Am I Feeling a Cold Draft on the Couch?

Are you sitting down to enjoy a quiet evening, only to find yourself searching for a blanket because your indoor unit is suddenly blowing cold air? Mitigating Cold Drafts from Ductless Heat Pump Heads Installed Over Seating Areas is one of the most common challenges homeowners face during the heavy heating season. It is incredibly frustrating to invest in a modern heating system only to feel a sudden, uninvited blast of unheated air directly on your shoulders while relaxing on the couch. Here is the thing: this temporary chill is almost always tied to the system's necessary defrost cycle, not a catastrophic mechanical failure.

While the defrost cycle itself is an unavoidable part of winter operation, the direct discomfort you feel is entirely preventable with the right remote control settings and airflow management. When you understand how your system operates, you can make quick adjustments to redirect that air and maintain a comfortable living space. Furthermore, keeping up with professional calibration ensures the equipment runs efficiently without sacrificing your comfort. If you rely on Ductless Heat Pumps to keep your home warm, knowing how to manage these brief periods of cool airflow will completely change your winter experience.

Understanding the Defrost Cycle Mechanics

To stop the chill, you first need to understand why the system is blowing cold air in the first place. Heat pumps work by extracting ambient heat from the outside air and moving it indoors. However, when outdoor temperatures drop and moisture is present, frost naturally accumulates on the outdoor condenser coil. If left unchecked, this frost would turn into a solid block of ice, choking off airflow and potentially damaging the internal components.

To prevent this, the heat pump enters a defrost cycle. This is a temporary reversal of the refrigeration process. Instead of bringing heat inside, the system briefly pulls heat from the indoor air and sends it outside to melt the frost off the outdoor coil. During this 5-to-15-minute window, the indoor unit stops blowing warm air. Because the indoor fan may continue to run at a low speed to circulate air and read room temperatures, you perceive this as a cold draft.

It is crucial to recognize that this "cold blow" is actually a sign of a healthy, functioning system protecting itself from severe ice damage. No DIY internal wiring, refrigerant handling, or mechanical tampering is ever required—or safe—to address this perfectly normal operational phase.

What Triggers Defrost Mode?

The shift into defrost mode is entirely automated and relies on a sequence of internal sensors and mechanical shifts. Here is exactly what happens behind the scenes:

• Sensor activation: Specialized temperature sensors detect frost buildup on the outdoor coil, signaling the control board that airflow is becoming restricted.

• Reversing valve shift: The system's reversing valve physically shifts position, redirecting hot, compressed refrigerant back to the outdoor unit to rapidly melt the ice.

• Indoor fan operation: While the outdoor fan stops to allow heat to build up and melt the frost, the indoor fan may continue to run at a very low speed, circulating unheated room air until the cycle completes.

To ensure these sensors and valves operate smoothly year after year, routine professional upkeep is essential. Enrolling in a comprehensive Heat Pump Maintenance Plan ensures your system only enters defrost when absolutely necessary, minimizing those brief periods of cooler airflow.

The Impact of Our Climate on Frost Buildup

If you feel like your system goes into defrost mode more frequently than what you read about online, you are not imagining things. The local climate plays a massive role in how often this cycle triggers. A damp, freezing Nova Scotia winter creates the absolute perfect conditions for rapid outdoor coil frost.

When temperatures hover right around the freezing mark and the air is loaded with maritime humidity, moisture freezes on contact with the cold outdoor coil almost instantly. In contrast, homeowners living in dry-cold inland climates might experience temperatures well below freezing, but because the air lacks moisture, their systems rarely need to defrost. Here on the coast, heavy moisture loads in the air make defrost cycles a daily necessity rather than a rare event.

Many homeowners worry that frequent defrosting means the system is undersized or failing. In reality, it is simply the equipment working exactly as designed to handle the heavy, wet air typical of our region. The unit is aggressively clearing its coils so it can return to heating your home efficiently. Understanding Why Your Ductless Heat Pump Blows Cold Air During Mount Uniacke Winters helps alleviate the stress of thinking a repair is needed. The key is not to stop the defrost cycle—which would ruin the outdoor unit—but to manage where that unheated air goes while the cycle runs.

Remote Adjustments: Managing Louver Angles for Comfort

When a ductless indoor unit is installed directly over a couch, recliner, or dining table, the default heating settings can inadvertently cause discomfort. In standard heating mode, the louvers (the horizontal blades on the front of the unit) are typically angled downward. Because hot air naturally rises, pushing the warm air down toward the floor ensures even heat distribution throughout the room. However, when the system enters defrost mode, that downward angle acts like a funnel, dumping unheated air directly onto anyone sitting below.

You can easily fix this using your remote control. By locking the louvers in a horizontal position during extreme cold snaps, you force the air to blow parallel to the ceiling. This takes advantage of the Coanda effect—a fluid dynamics principle where a jet of air naturally clings to a flat surface (the ceiling) rather than dropping immediately. The unheated air travels across the upper portion of the room and gently mixes with ambient air, entirely bypassing the people sitting below.

There is a slight trade-off to this adjustment. Horizontal airflow may result in slightly slower room heating once the system returns to its normal heating cycle, as the warm air will linger near the ceiling longer. However, for most homeowners, the immediate elimination of the cold draft sensation is well worth the minor shift in heating dynamics. We frequently guide homeowners through these exact operational nuances. For example, one homeowner reached out to us in the spring experiencing an issue with an air conditioning unit installed by another builder. One of our technicians provided helpful troubleshooting tips over the phone regarding airflow and settings before even booking a service call, ensuring they had immediate relief and a customer-friendly approach to their comfort.

Step-by-Step Louver Calibration

Adjusting your airflow direction is a simple, safe process you can perform at any time:

1. Locate the control button: Find the "Swing," "Vane," or "Airflow Direction" button on your specific remote control.

2. Cycle to horizontal: Press the button repeatedly to cycle through the directional arrows on the digital display until the fixed horizontal icon is selected.

3. Disable automatic movement: Avoid using the "Auto-Swing" feature if the unit is located directly above your primary seating area, as it will eventually sweep downward and hit you with a cold draft.

Optimizing Fan Speed Settings During Defrost Mode

Beyond directing the air away from you, managing the speed at which that air circulates is the next critical step in draft mitigation. Many homeowners leave their ductless system's fan speed set to "Auto" year-round. In Auto mode, the system continuously adjusts the blower speed based on the difference between the current room temperature and your target thermostat setting.

During a defrost cycle, the way the fan behaves depends heavily on the make and generation of your equipment. Many modern, premium units—such as Daikin and Lennox ductless systems—are engineered to automatically reduce the indoor fan speed to an ultra-low setting, or stop the blower entirely, the moment the reversing valve shifts. This intelligent design minimizes the circulation of unheated air.

However, older models, or units left on specific manual overrides, might continue to push air at a higher velocity even when the heat has temporarily stopped. If your system is blowing drafty air forcefully during defrost, check your remote. If the fan is locked on a "High" or "Medium" fixed speed, the system will continue to blow hard even when the air is cool.

To optimize comfort, we recommend setting the fan to a lower fixed speed or ensuring the Auto function is properly engaging during cold snaps. If the Auto setting continues to circulate drafty air forcefully, manually selecting the lowest quiet or "sleep" fan speed will drastically reduce the wind-chill effect in the room. Keep in mind that different manufacturers handle defrost fan speeds differently, so consulting your specific operating manual or a local professional can clarify exactly how your model should behave.

The Importance of Strategic Head Placement During Installation

While remote control adjustments provide excellent immediate relief, the ultimate solution to draft issues lies in expert initial system design. The physical location of the indoor unit dictates how air interacts with the living space. Experienced technicians generally avoid installing an indoor head directly over a primary seating area, bed, or dining table precisely because of the necessary defrost cycle and standard airflow patterns.

Proper room load calculations and layout planning ensure optimal airflow without direct drafts. A well-placed unit will cast air into open, high-traffic zones where it can circulate freely, rather than dropping directly onto a stationary occupant. In our 30+ years of HVAC experience serving the region, we have seen countless systems that run perfectly from a mechanical standpoint but fail to deliver true comfort simply because the indoor head was placed on the most convenient exterior wall rather than the most strategic one.

As a Daikin Comfort Pro, our 30+ years of local installation experience means we proactively program louver angles and plan head placements to compensate for frequent defrost cycles from day one. If you are struggling with a poorly placed unit, a professional assessment can identify better locations for indoor units during a retrofit or replacement project. We regularly consult with homeowners to correct layout issues. Last fall, one of our representatives visited a home to address concerns about an existing heat pump system not installed by our company. We explained the pros and cons of their current layout and provided helpful guidance on airflow management to ensure the system ran efficiently and comfortably despite its initial placement. Whether you need a simple assessment or comprehensive Heating Services, local expertise matters when designing a system meant to handle maritime weather.

When to Call a Professional: Normal Operation vs. System Issues

It is perfectly normal for a ductless system to blow cool air for a short duration during freezing, humid weather. However, it is equally important to distinguish between a routine defrost cycle and a genuine mechanical failure that requires a licensed technician. If your system is struggling to keep up, ignoring the warning signs can lead to more extensive and costly repairs down the road.

A standard defrost cycle should resolve itself relatively quickly. If you notice any of the following symptoms, the issue is no longer a simple matter of louver adjustments, and it is time to schedule a professional diagnostic visit.

• Extended cold blow: The unit blows cold air continuously for hours rather than the typical 5-to-15-minute window.

• Severe ice accumulation: The outdoor unit is encased in a solid, thick block of ice that does not melt, or ice is visibly crushing the delicate aluminum fins.

• Failure to resume heating: The system completes a cycle but fails to return to heating mode, remaining stuck in a cooling or neutral state.

• Strange noises: A loud hissing, grinding, or vibrating sound accompanies the cold drafts, indicating a potential issue with the reversing valve or compressor.

• Unresponsive controls: The system ignores remote control inputs entirely, refusing to adjust fan speeds or louver angles.

Low refrigerant levels, faulty reversing valves, or failed outdoor temperature sensors can easily mimic defrost issues, causing the system to blow cold air constantly. These problems require professional diagnosis and specialized tools. If your system exhibits these warning signs, reach out to an expert who understands the specific demands of our local Service Areas.

Frequently Asked Questions About Heat Pump Drafts

Why does my ductless heat pump blow cold air during defrost?

Your heat pump temporarily blows cold air during defrost because it reverses its refrigeration cycle to melt ice off the outdoor unit. Instead of bringing heat inside, it briefly pulls heat from your indoor air and sends it outside. This process protects the system from severe ice damage and typically lasts between 5 and 15 minutes.

How should I set my mini split louvers in winter?

For general heating, louvers should be angled downward to push warm air toward the floor, but if the unit is directly over a seating area, lock them horizontally. Setting the louvers horizontally utilizes the Coanda effect to push air across the ceiling. This prevents the unheated air from dropping directly onto you during a defrost cycle.

Can I stop my heat pump from going into defrost mode?

No, you cannot and should not attempt to stop your heat pump from entering defrost mode. Defrosting is a critical automated safety feature that prevents the outdoor condenser from turning into a solid block of ice. Disabling it would quickly lead to restricted airflow, catastrophic compressor failure, and a completely broken heating system.

How long does defrost mode last on a ductless heat pump?

A typical defrost cycle lasts anywhere from 5 to 15 minutes, depending on the severity of the frost buildup and outdoor temperatures. Once the sensors detect that the outdoor coil is clear of ice, the reversing valve shifts back, and the indoor unit resumes blowing warm air into your home.

Where should a mini split head be placed in a living room?

A mini split head should be placed high on an exterior wall where it can cast air into open, high-traffic zones without blowing directly onto stationary seating areas. Experienced technicians avoid installing indoor units directly above couches, beds, or dining tables to prevent drafts during the inevitable defrost cycles.

Will adjusting my louvers horizontally reduce my room's heating efficiency?

Adjusting your louvers horizontally may slightly slow down how quickly the room heats up, but it will not significantly impact the overall efficiency of the system. Because heat naturally rises, blowing warm air across the ceiling means it takes a bit longer to mix down to the floor level, but it is a worthwhile trade-off to eliminate cold drafts on your shoulders.

Restore Consistent Comfort to Your Living Space

While the defrost cycle is a necessary part of keeping your system running smoothly through a harsh winter, suffering through cold drafts on the couch certainly is not. By understanding why the "cold blow" happens and taking a few seconds to adjust your remote's louver and fan speed settings, you can eliminate the discomfort entirely. If adjusting the settings does not resolve the draft, or if your system seems stuck blowing cold air, do not hesitate to contact our experienced team for a professional inspection. Reach out to Presidential Ventilation Systems today to schedule a maintenance visit or request a free estimate, and let us ensure your home stays consistently comfortable all season long.
